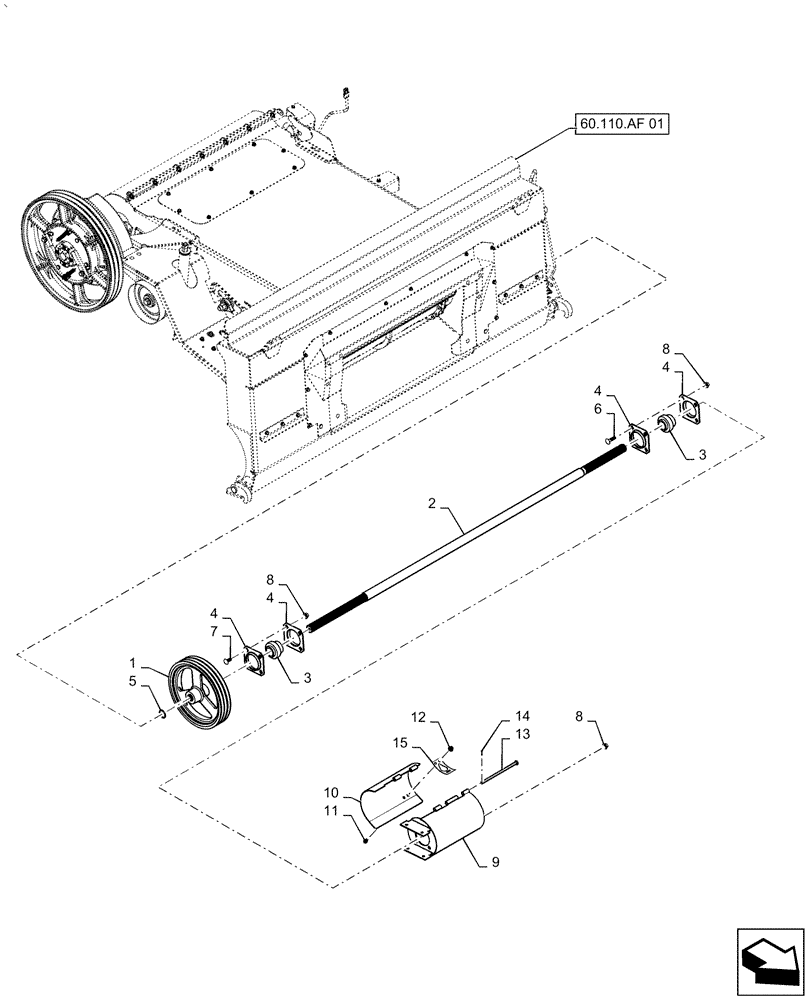

Запчасти Case IH AF4088 (60.120.AI[04]) - DRIVE, HEADER, SINGLE SPEED, HD (60) - PRODUCT FEEDING

1

47788940

Feeder Jackshaft Driven, Use for 2016

PULLEY

1шт.

1

47902761

Feeder Jackshaft Driven, Use from 2017

PULLEY

1шт.

2

47622566

Header Drive, Use for 2016

JACKSHAFT

1шт.

2

47648043

Header Drive, Use from 2017

SHAFT

1шт.

3

455805

BALL BEARING,40mm ID x 80mm OD x 42.9mm Thk

With Lockcollar

2шт.

4

86974037

FLANGE

Spherical Bearing Housing

4шт.

5

370004

SNAP RING,M35 x 1.5mm Thk, External

3шт.

6

87495307

CARRIAGE BOLT,M12 x 45mm, Cl 10.9

4шт.

7

87695426

CARRIAGE BOLT,M12 x 30mm, Cl 0.9

4шт.

8

86512497

FLANGE NUT,M12 x 1.75, Cl 10

12шт.

9

47664064

Access, Feeder Drive, LH

COVER

1шт.

10

NSS

NOT SOLD SEPARAT

Cover, LH, Upper, Incl in 9, Use for 2016

1шт.

10

47664076

Jack Shield LH Upper, Use from 2017

SHAFT

1шт.

11

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

2шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

13

84329842

PIN,10mm OD x 229.22mm L

Clevis

1шт.

14

130003

COTTER PIN,3mm OD x 30mm OAL

1шт.

15

86638316

LATCH

1шт.
