(60.103.AA[02]) - DRUM, CONVEYOR, FRONT, STANDARD

Запчасти Case IH AF4088 (60.103.AA[02]) - DRUM, CONVEYOR, FRONT, STANDARD (60) - PRODUCT FEEDING

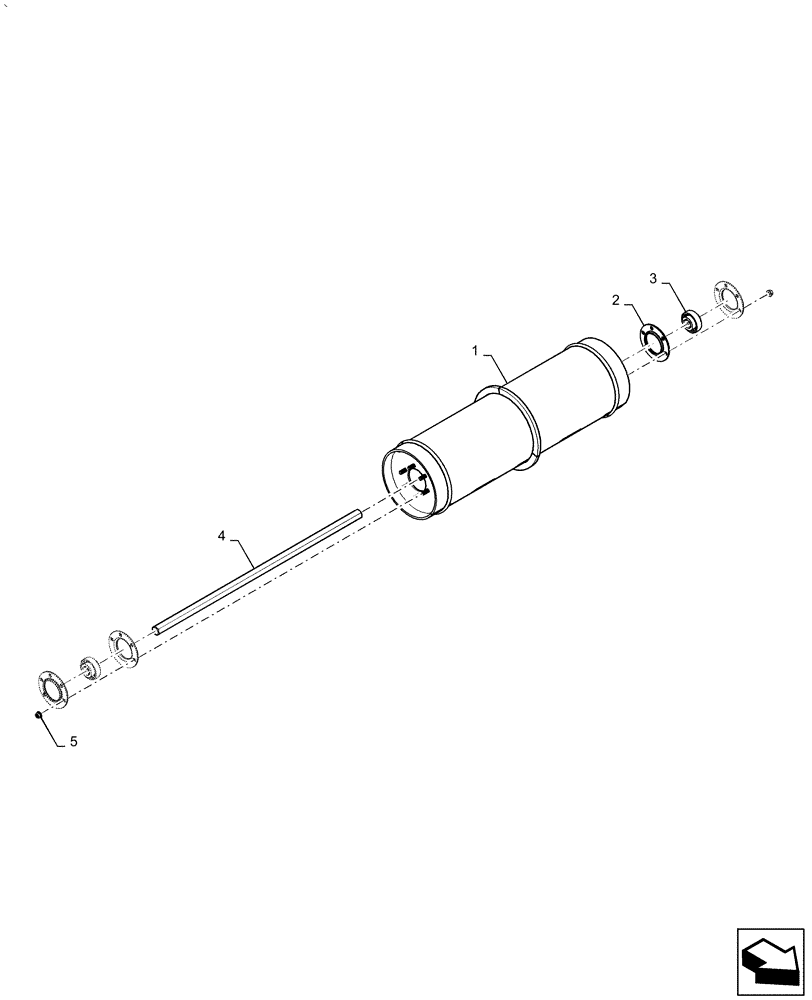

Схема запчастей Case IH AF4088 - (60.103.AA[02]) - DRUM, CONVEYOR, FRONT, STANDARD (60) - PRODUCT FEEDING
4
3
1
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84282611

DRUM

Weld Assy, Use for 2016

1шт.

1

47996692

Weld Assy, Use from 2017

DRUM

1шт.

2

87667404

FLANGED BEARING

Spherical Housing

4шт.

3

121602

BALL BEARING,28.6mm Hex x 72mm OD x 37.7mm W

2шт.

4

84282617

SHAFT

Feeder Drum

1шт.

5

86050279

FLANGE NUT,M10 x 1.5, Cl 10

12шт.
