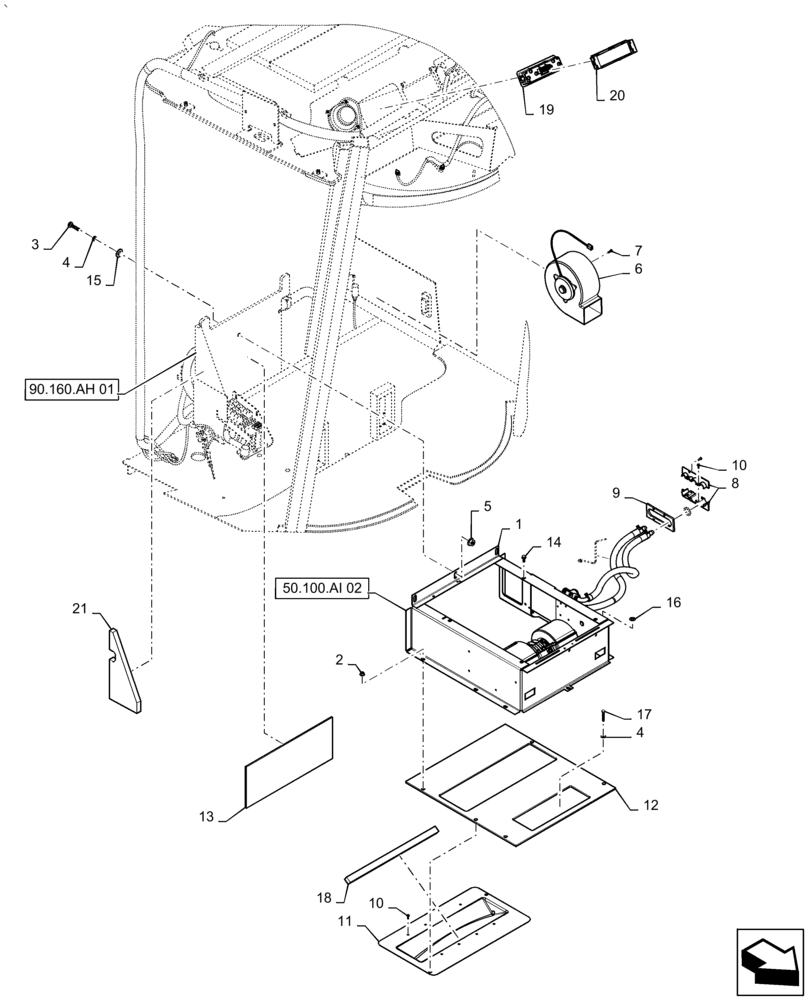

Запчасти Case IH AF4088 (50.100.AI[01]) - CAB, HEATER (50) - CAB CLIMATE CONTROL

1

47483289

Cab - Heat Only

AIR CONDITIONER

1шт.

2

825-5148

SERRATED NUT,M8, Flg Ser

6шт.

3

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

3шт.

4

492-11010

LOCK WASHER,#10

7шт.

5

231-51409

SERRATED NUT,Flg, USR, #10-24

3шт.

6

87107380

BLOWER

Assy, Pressurizer

1шт.

7

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

5шт.

8

125264A2

CLAMP

Hose, Bulk Head

2шт.

9

125000A2

GASKET

Bulkhead Clamp

1шт.

10

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

Captive

16шт.

11

121595A2

PAN

Pan

1шт.

12

279438A1

INSULATOR

Center Floor

1шт.

13

279305A2

INSULATOR

Rear Wall

1шт.

14

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

15

493-81000

LOCK WASHER,Ext-Int Tooth, #10

3шт.

16

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

17

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

4шт.

18

192269A1

FOAM INSULATION,25mm W x 500mm L x 19mm Thk

Seal Evaporator

1шт.

19

47648481

Control, Heater Only

PANEL

1шт.

20

87281122

SLEEVE

Mount

1шт.

21

297573A1

INSULATOR

Seal, Temperature Probe

1шт.
