Запчасти Case IH AF4088 (44.520.AF[02]) - REAR WHEEL TRACTION, USE FROM 2016 (44) - WHEELS

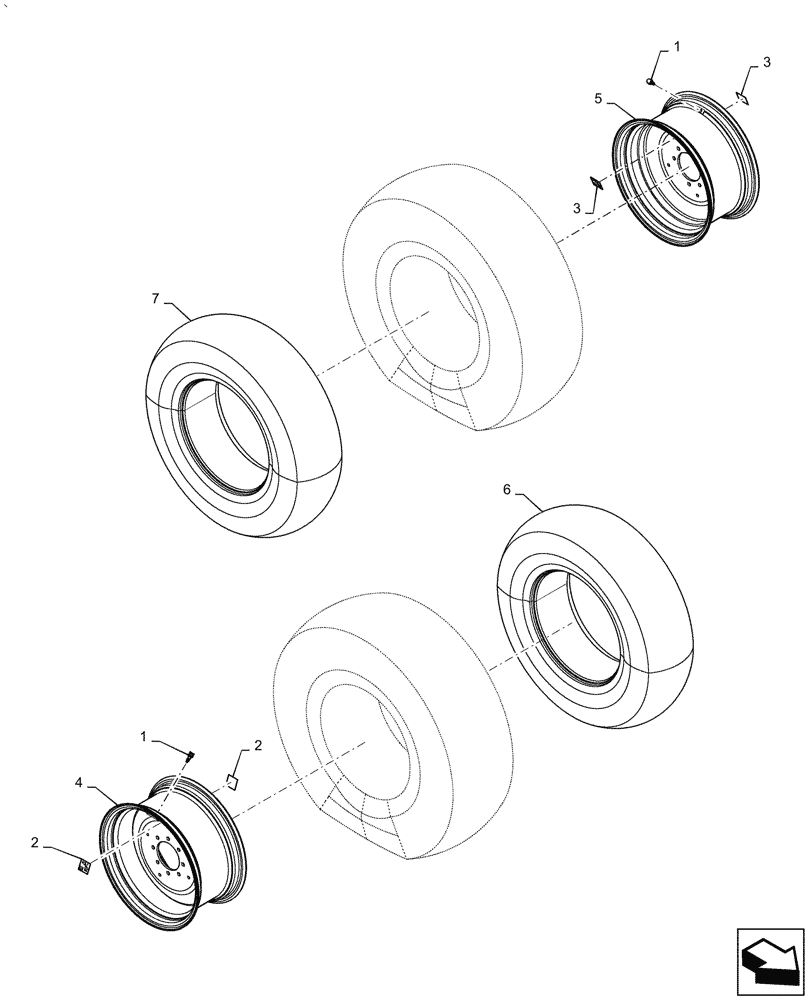

Схема запчастей Case IH AF4088 - (44.520.AF[02]) - REAR WHEEL TRACTION, USE FROM 2016 (44) - WHEELS
1
2
3
2
5
4
3
1
6
7

Артикул

Название

Примечание

Количество

1

395448

VALVE STEM

Use for 2016

2шт.

1

47684644

Tubeless Tire, Use for 2016

VALVE STEM

2шт.

2

181992A1

DECAL

150 LB FT, Torque

2шт.

3

181917A2

DECAL

350 LB FT, Torque

2шт.

4

47532651

24 X W12H

WHEEL

1шт.

5

47532652

26 X DW15

WHEEL

1шт.

6

47944777

Tube, Tyre 14.9-24

TIRE TUBE

1шт.

7

47944778

Tube, Tyre 16.9-26

TIRE TUBE

1шт.

Выбрано товаров: 8
