Запчасти Case IH AF4088 (44.511.AG[02]) - FRONT WHEEL TRACTION, USE FROM 2016 (44) - WHEELS

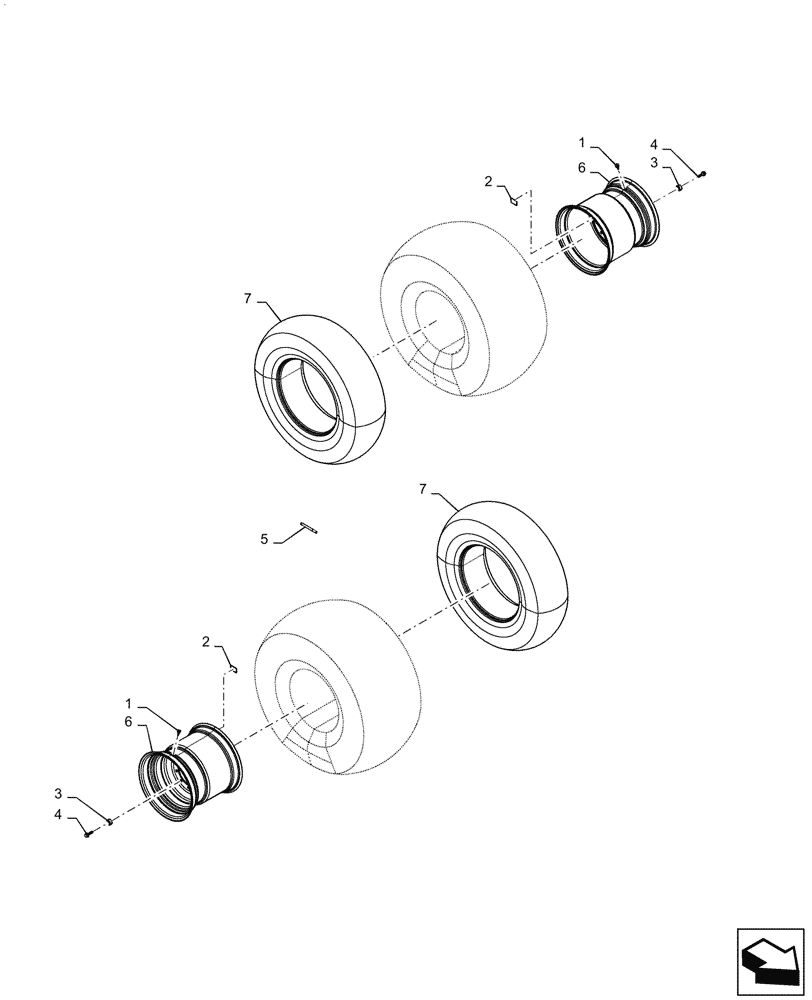

Схема запчастей Case IH AF4088 - (44.511.AG[02]) - FRONT WHEEL TRACTION, USE FROM 2016 (44) - WHEELS
6
3
2
2
3
5
1
7
6
1
4
4
7

Артикул

Название

Примечание

Количество

1

87106339

VALVE STEM

Tubeless Tire, Use for 2016

2шт.

2

87570139

DECAL

Single Wheel Torque

4шт.

3

130871A3

SPACER

Wheel Bolt

40шт.

4

427374A1

BOLT

Drive Wheel

40шт.

5

131443A1

BOLT,M20 x 1.5 x 210mm, Cl 8.8

Drive Wheel Starter

4шт.

6

47601161

Assy 26 x DW25A

WHEEL

2шт.

7

47944776

Tube, Tyre, 28L-26

TIRE TUBE

2шт.

Выбрано товаров: 7
