Запчасти Case IH AF4088 (41.200.AO[03]) - STEERING LINE, HYDRAULIC SYSTEM, REAR AXLE, POWERED (41) - STEERING

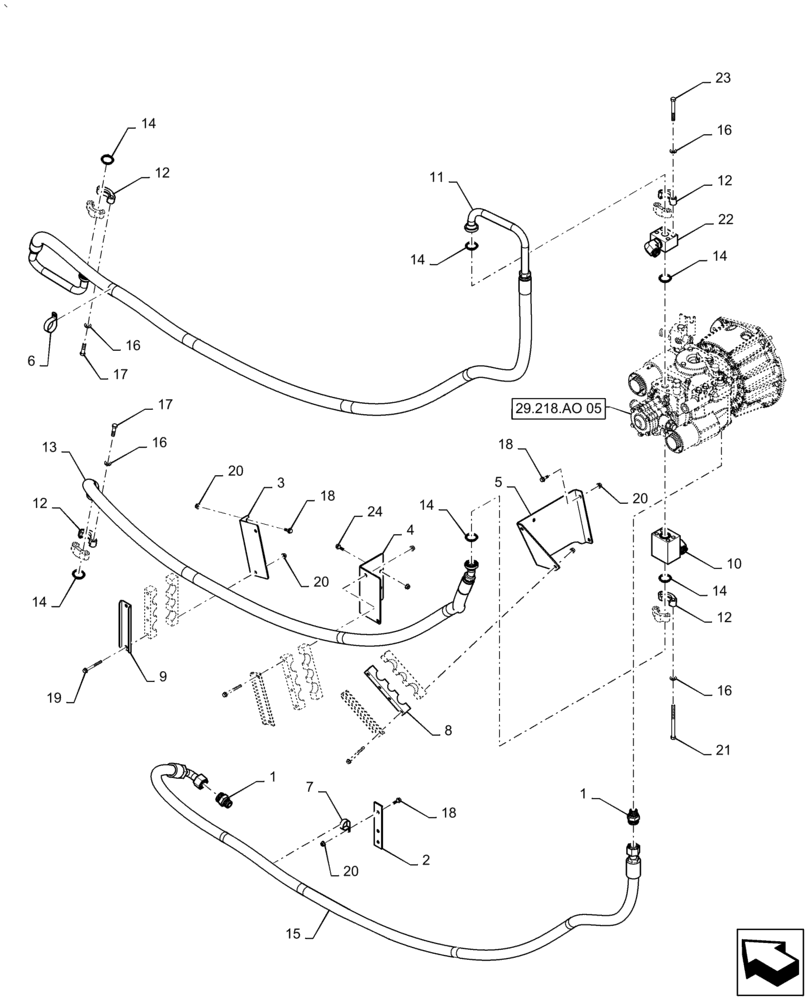

Схема запчастей Case IH AF4088 - (41.200.AO[03]) - STEERING LINE, HYDRAULIC SYSTEM, REAR AXLE, POWERED (41) - STEERING
20
14
6
2
14
21
5
20
13
24
14
29.218.ao 05
9
17
16
20
18
17
12
14
1
22
20
12
14
4
23
3
16
12
16
16
19
11
8
12
15
18
18
1
10
14
7

Артикул

Название

Примечание

Количество

1

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

2шт.

2

427273A1

SUPPORT

1шт.

3

47537881

Painted, Hydro Clamp, Front

SUPPORT

1шт.

4

47604865

Hydro Clamp, Middle

SUPPORT

1шт.

5

47579492

Painted, Hydro Clamp, Rear

SUPPORT

1шт.

6

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

Closed

1шт.

7

87010657

CLAMP,34.9mm, Coat, 8.7mm Bolt Hole, P Type

Closed

1шт.

8

221145A1

CLAMP

3шт.

9

87727969

BRACKET

Channel, Painted, Clamp Back-up

3шт.

10

226647A1

ADAPTER

Block, Adapter Manifold

1шт.

11

47467517

Assy, Reverse Hydro

HYDRAULIC HOSE

1шт.

12

S97224

CLAMP

8шт.

13

47467515

Assy, Forward Hydro

HOSE

1шт.

14

86529541

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

6шт.

15

47467518

Assy, Hydro Drain

HOSE

1шт.

16

87019792

WASHER,0.47" ID x 0.92" OD x 0.1" Thk

16шт.

17

280747

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

Use for 2016

8шт.

17

84192879

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

Use from 2017

8шт.

18

87698833

BOLT,M8 x 33.1mm, Cl 10.9

9шт.

19

87695420

BOLT,Hex, M8 x 80mm, Cl 10.9

Flange

8шт.

20

86507066

FLANGE NUT,M8 x 1.25, Cl 10

20шт.

21

280352

SCREW,Hex, 7/16" - 14 x 5 1/2", Gr 5

4шт.

22

226646A1

BLOCK

Adapter Manifold

1шт.

23

9627866

BOLT,Hex, 7/16" - 14 x 3 1/2", Gr 5

4шт.

24

87670762

BOLT,Hex, M8 x 90mm, Cl 10.9

1шт.

Выбрано товаров: 25
