Запчасти Case IH AF4088 (41.101.AB[02]) - STEERING COLUMN, WHEEL, HEATER ONLY (41) - STEERING

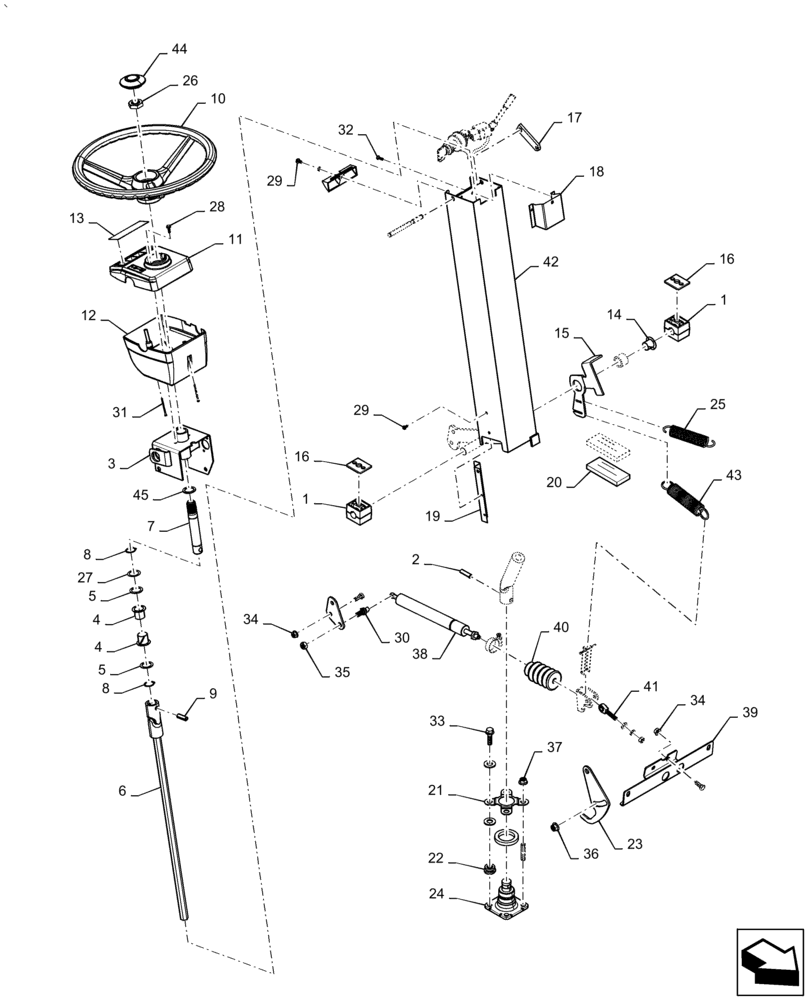

Схема запчастей Case IH AF4088 - (41.101.AB[02]) - STEERING COLUMN, WHEEL, HEATER ONLY (41) - STEERING
22
29
45
24
23
21
28
9
32
34
16
4
39
26
7
8
44
33
42
3
17
4
12
15
36
41
19
27
14
25
8
18
10
43
29
1
5
37
1
35
6
2
13
20
38
34
30
5
31
16
11
40

Артикул

Название

Примечание

Количество

1

120326A2

BALL BEARING,24 mm

Bearing

4шт.

2

38-32420

PIN,9.53mm OD x 31.75mm L, Coiled

1шт.

3

84131623

BRACKET

Weld

1шт.

4

373445R1

BUSHING,22.25mm ID x 22.99mm L

2шт.

5

495-81051

WASHER,29/32" x 1 1/4" x .060"

2шт.

6

130952A2

FLEXIBLE JOINT

Universal Upper, Steering

1шт.

7

124054A3

SHAFT

Steering

1шт.

8

100-1187

SNAP RING,#87, Ext

2шт.

9

84224891

COILED PIN

1шт.

10

251342A1

STEERING WHEEL

1шт.

11

87663389

PROTECTIVE COVER

Steering Column, Upper

1шт.

12

130956A4

COVER

Lower

1шт.

13

120332A1

DECAL

Dead Front

1шт.

14

185062R1

BUSHING

Bearing

1шт.

15

136798A1

PEDAL

Release, Weldment

1шт.

16

185268A1

PLATE

Bearing Cover

2шт.

17

127040A2

PLATE

Tapped

1шт.

18

231985A1

GUARD

Shield, Wiring

1шт.

19

400648A1

SHIELD

Wiring Harness

1шт.

20

130961A1

FOAM INSULATION

Foam

2шт.

21

136805A1

RETAINER

Stub Shaft

1шт.

22

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

4шт.

23

446632A1

BRACKET

Steering Pump

1шт.

24

120338A2

STEERING COLUMN

Pump

1шт.

25

182652A1

SPRING

Extension

1шт.

26

F19646

LOCK NUT,13/16"-20, Thin

1шт.

27

495-81048

WASHER,0.91" ID x 1.25" OD x 0.03" Thk

1шт.

28

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

Captive

2шт.

29

1267247C1

SELF-TAP SCREW,Phil Pan Hd, #10 - 24 x 3/8", Cl 8.8

Tapping

3шт.

30

142597A1

STUD

Ball

1шт.

31

540-714

SCREW,Pan HD, M3 x 45mm, Cl 4.8

2шт.

32

260-14512

SCREW,Cross Pan Hd, #10 x 3/4"

2шт.

33

905-10035

BOLT,Hex Flg, M10 x 35mm

3шт.

34

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

35

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

36

825-51410

FLANGE NUT,M10, Flg Ser

3шт.

37

224761A1

CLEVIS

Gas Spring

1шт.

38

224357A1

GAS STRUT

Locking

1шт.

39

120143A4

SUPPORT

Bracket

1шт.

40

195089A1

BOOT

Assy

1шт.

41

224235A1

BALL JOINT

Rod End

1шт.

42

47702974

Tube Welded

TUBE

1шт.

43

130962A2

SPRING

Extension

1шт.

44

187177A1

CAP

Assy

1шт.

45

84230050

SHIM

Steering Column

1шт.

Выбрано товаров: 45
