Запчасти Case IH AF4088 (39.100.AB[02]) - SEPARATOR, DOOR, LH (39) - FRAMES AND BALLASTING

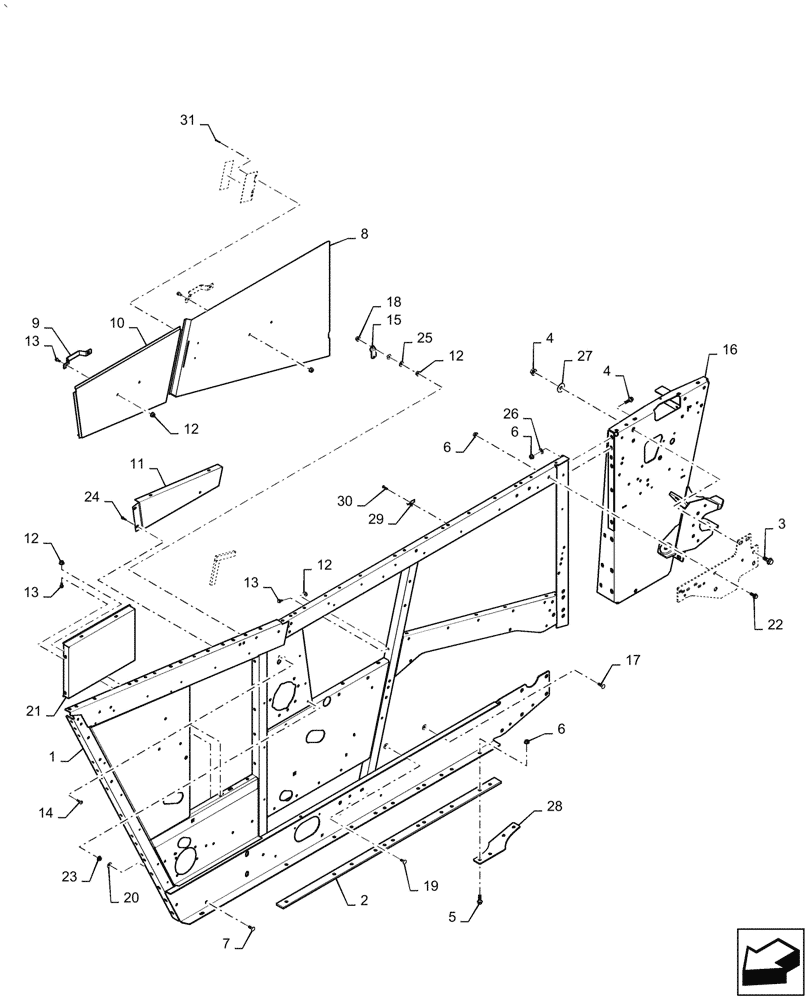

Схема запчастей Case IH AF4088 - (39.100.AB[02]) - SEPARATOR, DOOR, LH (39) - FRAMES AND BALLASTING
13
27
28
11
9
17
31
10
24
18
19
12
12
20
15
8
13
6
5
29
6
26
22
13
16
12
4
21
25
2
4
14
30
15
6
23
1
3
12
7

Артикул

Название

Примечание

Количество

1

47412766

Side Weld Assy, LH, Use for 2016

WATER SEPARATOR

1шт.

1

47414145

Side Weld Assy, LH, Use from 2017

WATER SEPARATOR

1шт.

2

47415348

Main Sill Flange

REINFORCEMENT

1шт.

3

86978772

FLANGE BOLT,Hex, M16 x 40mm, Cl 10.9, Full Thd

2шт.

4

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

5

87695413

BOLT,M12 x 51.8mm, Cl 10.9

18шт.

6

86512497

FLANGE NUT,M12 x 1.75, Cl 10

21шт.

7

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

4шт.

8

47452563

Door

HANDLE

2шт.

9

47452569

Weld Assy, Seperate Side LH

DOOR

1шт.

10

47452571

Mid Center Left

SUPPORT

1шт.

11

86507066

FLANGE NUT,M8 x 1.25, Cl 10

Use for 2016

11шт.

11

86507066

FLANGE NUT,M8 x 1.25, Cl 10

Use from 2017

13шт.

12

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange, Use for 2016

10шт.

12

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange, Use from 2017

12шт.

13

847-3830

SERRATED SCREW,Sl Truss, M8 x 30mm, Cl 10.9

1шт.

14

47452583

Bracket, Grain Cleanout Cover

SUPPORT

1шт.

15

47412772

Assy, Front LH

POST

1шт.

16

87682393

CARRIAGE BOLT,M10 x 1.5 x 35mm, Cl 10.9

2шт.

17

87681210

FLANGE NUT,M8 x 1.25, Cl 10

Prev Torque

1шт.

18

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

1шт.

19

87625622

RETAINER

Nut, Push - on, 3/8 Bolt

7шт.

20

47452559

Chopper - beater Filler

SHEET

1шт.

21

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

Flange

3шт.

22

86050300

FLANGE NUT,M6 x 1.0, Cl 10

Use for 2016

2шт.

23

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

Use from 2017

2шт.

24

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

25

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

7шт.

26

6100024

WASHER,17mm ID x 50mm OD x 3mm Thk

Flat

2шт.

27

47565654

LH, Sill to Axle

SUPPORT

1шт.

28

167800C1

CLIP

Fastener, Door Retain

7шт.

29

445394

RIVET,Pop, 3/16" x 1/2" OAL

7шт.

30

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

2шт.

31

1312068C1

DECAL

Concave Indicator

1шт.

32

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

1шт.

32

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

1шт.

33

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

33

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

Выбрано товаров: 38
