Запчасти Case IH AF4088 (35.300.AQ) - HYDRAULIC, OIL RESERVOIR, USE FOR 2016 (35) - HYDRAULIC SYSTEMS

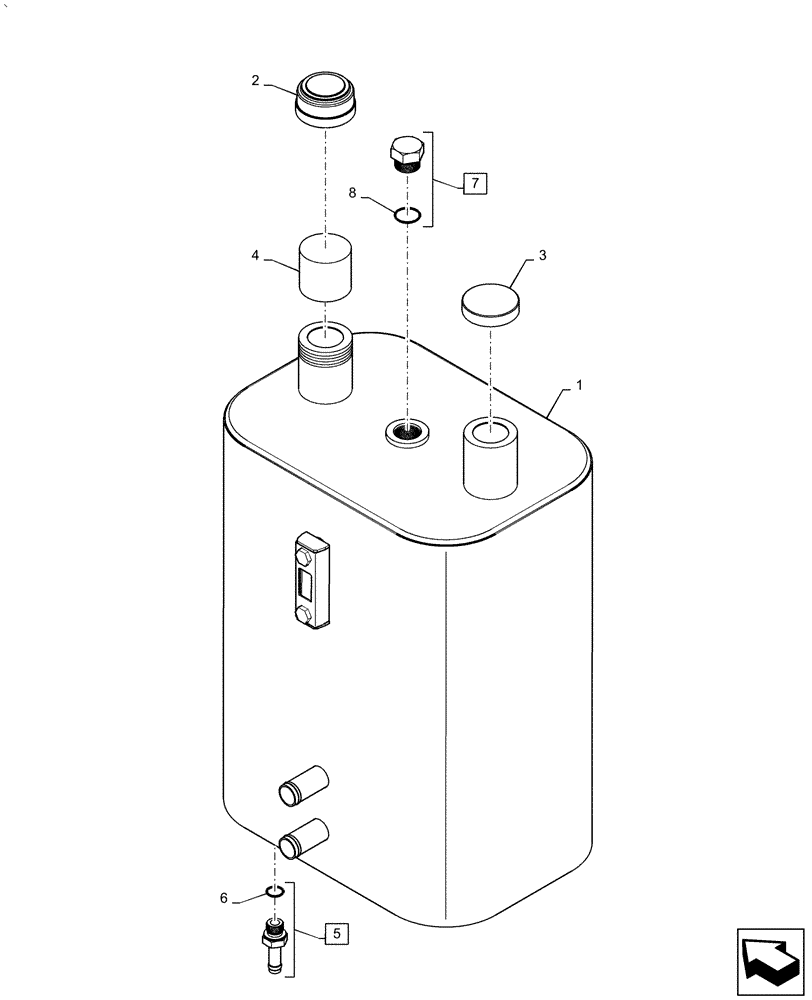

Схема запчастей Case IH AF4088 - (35.300.AQ) - HYDRAULIC, OIL RESERVOIR, USE FOR 2016 (35) - HYDRAULIC SYSTEMS
8
4
7
2
6
3
5
1

Артикул

Название

Примечание

Количество

1

47613140

Hydraulic Lift Oil

RESERVOIR

1шт.

2

1272941C2

BREATHER

Cap

1шт.

3

1346309C2

FILLER CAP

Non-Vented

1шт.

4

191116A1

BAFFLE

Fillneck

1шт.

5

84161345

ADAPTER

Fitting, Hose, Incl 6

1шт.

6

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

7

163410

PLUG,1-1/16" - 12 ORB

Incl 8

1шт.

8

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Выбрано товаров: 8
