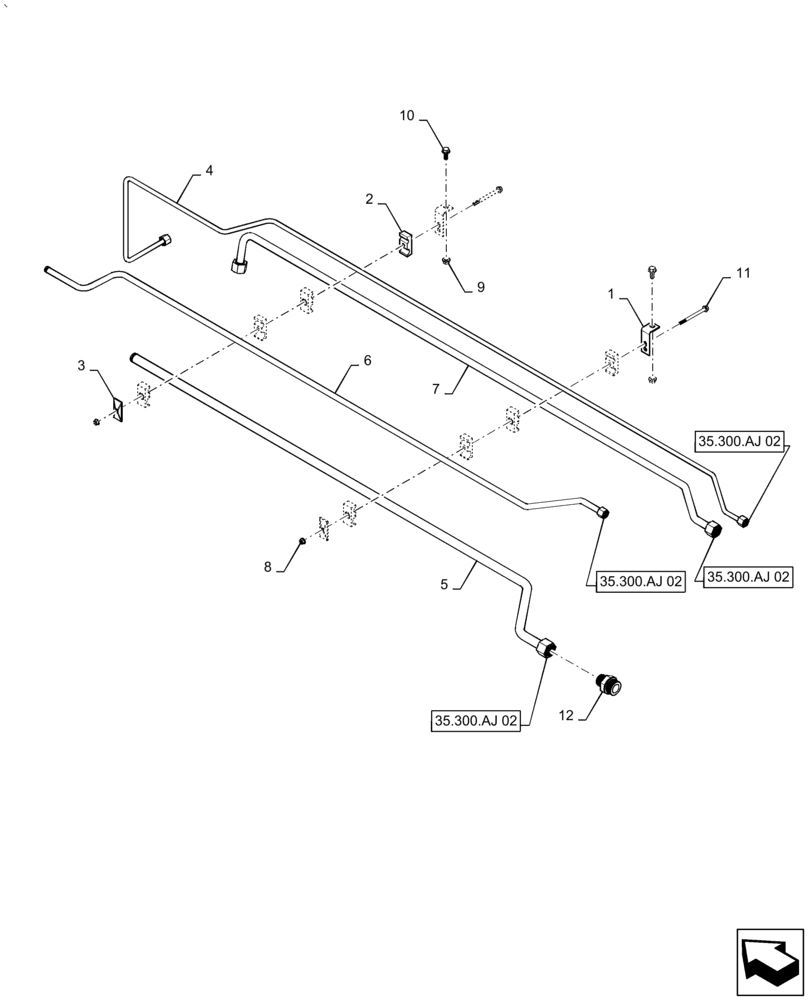

Запчасти Case IH AF4088 (35.300.AJ[01]) - HYDRAULIC PLUMBING, TUBE BUNDLE, FRONT (35) - HYDRAULIC SYSTEMS

1

87549264

SUPPORT TUBE,112.4 mm L

Bundle Center, Painted

2шт.

2

87000153

CLAMP,2 Hole, 19.05 - 12.70 mm Dia Ribbed, 37mm H x 67mm L

2шт.

3

1347127C1

PLATE

2шт.

4

47583683

Hydraulic Lift, Regulated Pressure Supply

HYD TUBE

1шт.

5

47583686

Hydraulic Lift, System Return

HYD TUBE

1шт.

6

47583681

Hydraulic Lift, Low Pressure Return

HYD TUBE

1шт.

7

47583685

Hydraulic Lift, Main Supply

HYD TUBE

1шт.

8

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

9

86050279

FLANGE NUT,M10 x 1.5, Cl 10

5шт.

10

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.

11

87301686

BOLT,M8 x 108.1mm, Cl 10.9

Flange

2шт.

12

87530372

Straight

CONNECTING LINK

1шт.

13

87000138

CLAMP

2шт.
