Запчасти Case IH AF4088 (29.218.AO[06]) - HYDROSTATIC PUMP, CONTROL VALVE, 2-SPEED, POWERED, USE FOR 2016 (29) - HYDROSTATIC DRIVE

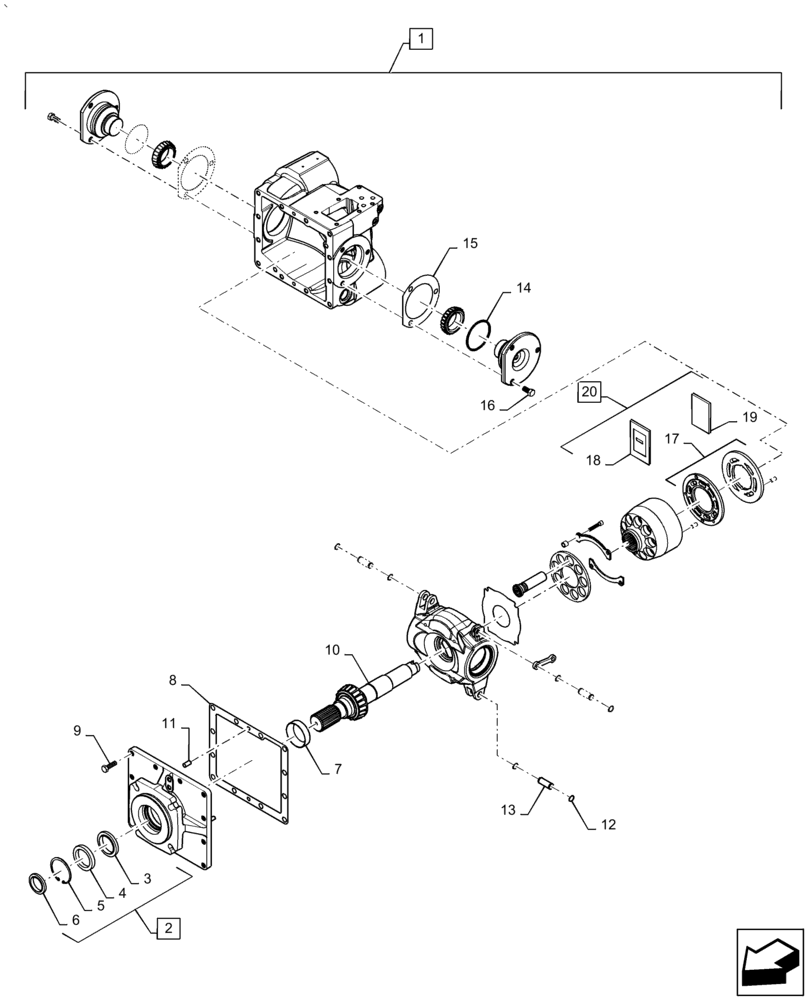

Схема запчастей Case IH AF4088 - (29.218.AO[06]) - HYDROSTATIC PUMP, CONTROL VALVE, 2-SPEED, POWERED, USE FOR 2016 (29) - HYDROSTATIC DRIVE
8
9
20
10
12
1
7
14
5
2
11
4
15
18
6
13
16
19
3
17

Артикул

Название

Примечание

Количество

1

47728929

Incl 2 - 20

HYDRAULIC PUMP

1шт.

2

87678486

SEAL KIT

Shaft, Incl 3 - 6

1шт.

3

87665331

SEAL

Shaft

1шт.

4

87623850

SPACER

Shaft Seal

1шт.

5

87665330

RING

Retaining

1шт.

6

87637839

SEAL,39.9mm ID x 50.1mm OD x 8.9mm Thk

Dust

1шт.

7

174125

BEARING CUP," ID x 93.264 mm OD x 23.813 mm

1шт.

8

142399C1

GASKET

1шт.

9

9627887

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5, Full Thd

12шт.

10

403149A1

SHAFT

Assy, Hydro Pump

1шт.

11

280651

PIN,7.86mm OD x 15.88mm L

Pin

7шт.

12

100-1356

SNAP RING,#56, Ext

Retaining Crescent

4шт.

13

140766C1

PIN,14.22mm OD x 39.12mm L

2шт.

14

9617975

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

4шт.

15

142386C91

SHIM KIT

Package

1шт.

16

50087

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5, Full Thd

6шт.

17

47705983

REPAIR KIT

Bearing Plate

1шт.

18

47779372

INSTRUCTION

1шт.

19

47779335

INSTRUCTION

1шт.

20

47779385

KIT

Incl 17 - 19

1шт.

Выбрано товаров: 20
