Запчасти Case IH AF4088 (29.200.AI[02]) - HANDLE ASSY, PROPULSION CONTROLS PALM REST, HEATER AND AC, USE FOR 2016 (29) - HYDROSTATIC DRIVE

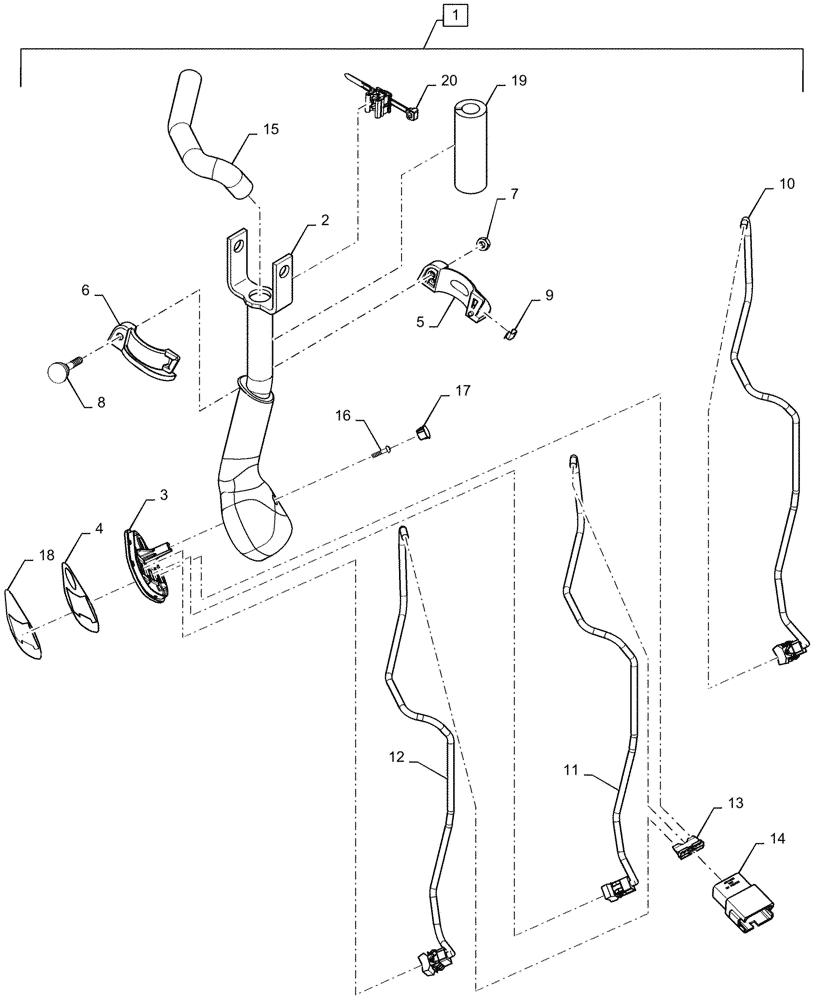

Схема запчастей Case IH AF4088 - (29.200.AI[02]) - HANDLE ASSY, PROPULSION CONTROLS PALM REST, HEATER AND AC, USE FOR 2016 (29) - HYDROSTATIC DRIVE
20
16
4
10
9
7
18
5
19
15
3
13
14
6
17
8
12
2
11
1

Артикул

Название

Примечание

Количество

1

47534118

Assembly, Propulsion Control, Incl 2 - 20

LEVER

1шт.

2

113314A2

CONTROL LEVER

Assy

1шт.

3

124670A1

COVER PLATE

Prop Control Lever - Cotton

1шт.

4

47616790

Propulsion Handle Plate

DECAL

1шт.

5

116152A1

SUPPORT

1шт.

6

116150A1

SUPPORT

1шт.

7

425-104

NUT,1/4"-20, Cl 5

1шт.

8

86987885

KNOB

Palm Rest

1шт.

9

1343962C1

CLIP,ELECTRICAL

1шт.

10

47739743

Reel Raise Lower

ROCKER SWITCH

1шт.

11

47739750

Unloader Swing

ROCKER SWITCH

1шт.

12

47626758

Feeder Raise Lower,continue to service, before YFRA00297

ROCKER SWITCH

1шт.

12

47969328

Remove 47626758 Start from YFRA00297

ROCKER SWITCH

1шт.

13

87695724

ELEC CONNECTOR,Male, 12 Pole

Connector, Electric

1шт.

14

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Wedge Lock For Housing

1шт.

15

120344C1

CONDUIT

1шт.

16

86637783

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

1шт.

17

282056A1

PLUG

1шт.

18

47616790

Assy, Propulsion Control

DECAL

1шт.

19

47976225

Convolute Insulation, Use from 2016

CONDUIT

1шт.

20

87694057

CABLE TIE,200mm L

Mount with 2 piece Edge Clip, Use from 2016

1шт.

Выбрано товаров: 21
