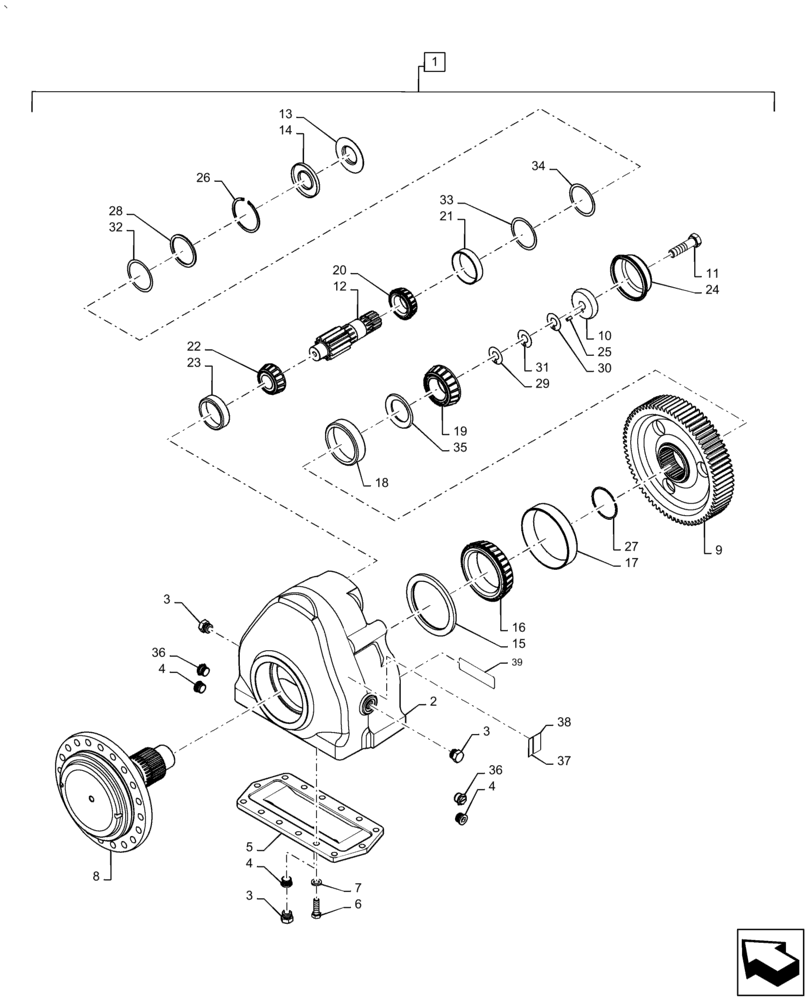

Запчасти Case IH AF4088 (25.310.AB) - FINAL DRIVE, ASSY (25) - FRONT AXLE SYSTEM

1

1997415C4

FINAL DRIVE

Incl 2 - 39

2шт.

2

135285A2

HOUSING

Final Drive Heavy Duty Machined

1шт.

3

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

3шт.

4

218-5212

PLUG,1-1/16" - 12 ORB

3шт.

5

135286A1

COVER

Final Drive Housing

1шт.

6

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

14шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

14шт.

8

335948A1

SHAFT

Final Drive Heavy Duty Modified

1шт.

9

135287A1

PINION

Gear

1шт.

10

135289A1

RETAINER

Plate, Bearing

1шт.

11

828-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

1шт.

12

135290A1

SHAFT

Pinion, Use for 2015

1шт.

12

87354348

SHAFT

Pinion, 12T Final Drive Input, Use from 2016

1шт.

13

135291A1

GUARD

Seal

1шт.

14

135292A1

OIL SEAL,55.6mm ID x 108.17mm OD x 12.7mm Thk

1шт.

15

135293A1

OIL SEAL,158.75mm ID x 197mm OD x 12.7mm Thk

Output Shaft Lip

1шт.

16

335947A1

ROLLER BEARING,133.35mm ID x 46.04mm W

Cone

1шт.

17

135649A1

BEARING CUP,196.85mm OD x 38.1mm W

1шт.

18

71455R1

BEARING ASSY,136.53mm OD x 31.75mm W

Cup

1шт.

19

135294A1

THRUST BEARING,71.44mm ID x 41.19mm W

Cone

1шт.

20

K4729

ROLLER BEARING,57.15mm ID x 30.96mm W

Cone

1шт.

21

135651A1

BEARING CUP,104.78mm OD x 23.81mm W

1шт.

22

135295A1

ROLLER BEARING,44.46mm ID x 35.98mm W

Cone

1шт.

23

135650A1

BEARING CUP,101.6mm OD x 26.99mm W

1шт.

24

135296A1

BEARING COVER

Final Drive

1шт.

25

37-1512

DOWEL,5/16" x 3/4"

Pin

1шт.

26

101-21412

SNAP RING,#412, 4.430", Int

1шт.

27

135297A1

CIRCLIP

Ring, Retaining Snap

1шт.

28

193652A1

WASHER

1шт.

29

135299A1

SHIM,0.051mm Thk

Output Final Drive

10шт.

30

135300A1

SHIM,0.457mm Thk

Output Final Drive

10шт.

31

135301A1

SHIM,0.635mm Thk

Output Final Drive

10шт.

32

135302A1

SHIM,88mm ID x 104mm OD x 0.05mm Thk

Output

10шт.

33

135303A1

SHIM,88mm ID x 104mm OD x 0.46mm Thk

10шт.

34

135305A1

SHIM,88mm ID x 104mm OD x 0.63mm Thk

Input

10шт.

35

135307A1

SPACER

Final Drive

1шт.

36

353-782

PLUG,Slotted, 1 1/16"-12

2шт.

37

47694376

DECAL

Label - Part Number - Heavy Duty Final Drive

1шт.

38

NSS

NOT SOLD SEPARAT

Decal, Label, Serial Number, Heavy Duty Final Drive, Incl in 1

1шт.

39

NSS

NOT SOLD SEPARAT

Decal, Label, Removable Serial Number, Final Drive, Incl in 1

1шт.
