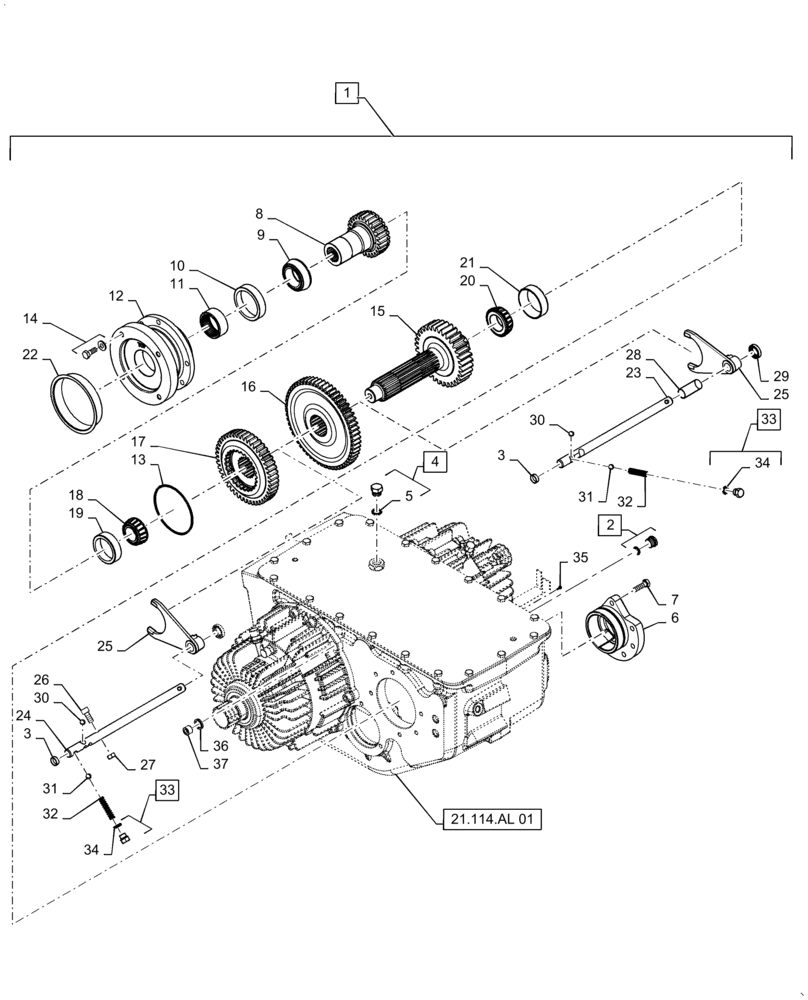

Запчасти Case IH AF4077 (21.114.AL[02]) - TRANSMISSION HOUSING, DIFFERENTIAL (21) - TRANSMISSION

1

87393461

TRANSMISSION

Assy, Combine, 37/35 Cg Fas, Incl 2 - 37

1шт.

1

87393461R

REMAN-TRANSMISSION

37/35 Change Gear

1шт.

1

87393461C

CORE-TRANSMISSION

Return Number

1шт.

2

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

1шт.

3

41-1012

PLUG,Cup, 3/4"

2шт.

4

214389

PLUG,3/4" - 16 ORB

Tube, Incl 5

1шт.

5

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

1997984C1

HOUSING,73.4 mm ID x 101.51 mm OD x 33.5 mm

Cage, Bearing Cup

1шт.

7

183089A1

SCREW

Bolt, W/Seal

9шт.

7

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

9шт.

8

184217C1

GEAR

Gear, Input

1шт.

9

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

Cone

1шт.

9

1741

ROLLER BEARING

Cone

1шт.

10

130503H

BEARING CUP

1шт.

10

1742

BEARING CUP

1шт.

11

359950R91

NEEDLE BEARING

1шт.

12

84195190

HOUSING

Input, Transmission

1шт.

13

238-5348

O-RING,0.21" Thk x 4.35" ID, -348, Cl 5, 75 Duro

1шт.

14

183087A1

SCREW

W/Seal, Use for 2016

6шт.

14

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

Use from 2017

6шт.

15

1997650C1

SHAFT

Gear, Change Driver-37T

1шт.

16

401889R1

GEAR

Sliding 127 58T

1шт.

17

87305299

GEAR

2nd and 3rd Sliding

1шт.

18

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

Cone

1шт.

19

51200379

BEARING CUP,69.9mm OD x 18.95mm W

1шт.

20

290099C91

TAPERED BEARING,39.69mm ID x 22.1mm W

Input Driven Shaft RH Cone

1шт.

21

290100C1

BEARING CUP,73.05mm OD x 17.78mm W

Input Driven Shaft RH

1шт.

22

353-75

PLUG,Cap, 5.200" OD

1шт.

23

84213134

SHIFT RAIL

1st

1шт.

24

84213133

SHIFT RAIL

2nd - 3rd

1шт.

25

1997656C1

SHIFTER FORK

2шт.

26

1997657C1

SET SCREW

2шт.

27

829-1310

NUT,M10, Cl 10

2шт.

28

189168A1

SPACER

Shift Rail

1шт.

29

1997906C1

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

Shifter Rail

2шт.

30

211-1014

BALL,7/16" Dia

2шт.

31

211-1016

BALL,12.7mm OD, Gr 24

2шт.

32

87670320

SPRING

Shift Detent

2шт.

33

218-5155

PLUG,9/16" - 18 ORB

Hex, Orb, Incl 34

2шт.

34

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

35

87019261

SCREW

Drive

2шт.

36

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

20шт.

37

183084A1

SCREW

Hex Socket

20шт.

37

963-12040

HEX SOC SCREW,M12 x 40mm, Cl 10.9

20шт.
