Запчасти Case IH AF4077 (05.100.02[03]) - INITIAL STOCKING LIST (LIST B) (05) - SERVICE & MAINTENANCE

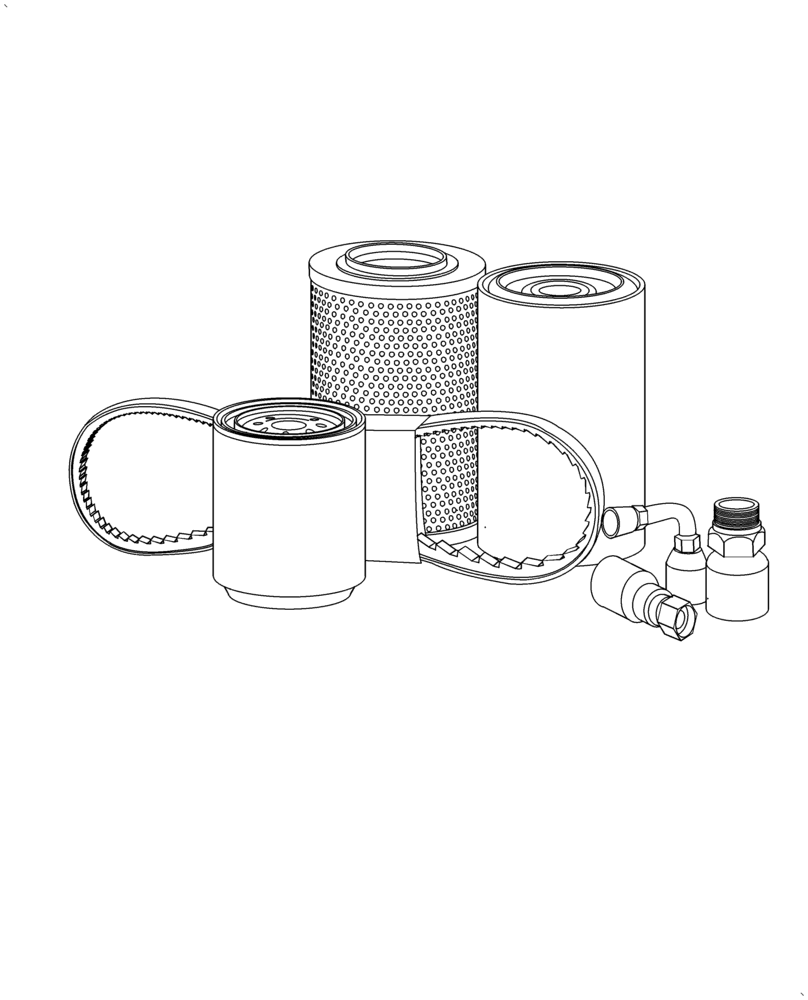

Схема запчастей Case IH AF4077 - (05.100.02[03]) - INITIAL STOCKING LIST (LIST B) (05) - SERVICE & MAINTENANCE

Артикул

Название

Примечание

Количество

1

222699A1

FUSE KIT

1шт.

2

87510575

SEAL KIT

Piston Pump

1шт.

3

87365420

SEAL KIT

Seal

1шт.

4

1542830C2

SEAL KIT

1шт.

5

329484A1

SEAL KIT

Hydraforce

1шт.

6

329483A1

SEAL KIT

Hydraforce

1шт.

7

193414C2

BOARD

Block Front Auger Bearing

2шт.

8

87650438

BALL BEARING,22.25mm Hex x 52mm OD x 25.4mm W

2шт.

9

84330073

BALL BEARING

sub from 668719R92

2шт.

10

121602

BALL BEARING,28.6mm Hex x 72mm OD x 37.7mm W

2шт.

11

84414986

FLANGE

4шт.

12

325103

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

13

84330070

BALL BEARING

214366C91 sub to 204807C91

2шт.

14

47417549

FLANGE

Bearing with Relube Groove, 62mm

1шт.

15

47417550

FLANGE

Bearing with Lube Fitting, 62mm

1шт.

16

47609223

Chaffer Sieve

DIVIDER

3шт.

17

87430561

FLANGE

Spherical Bearing Housing with Lube Fitting, 72mm

2шт.

18

322360

BALL BEARING,35mm ID x 72mm OD x 19mm W

1шт.

19

86620026

FLANGED BEARING

Spherical Housing, 72mm

2шт.

20

47607660

Vertical Auger Drive

CHAIN

1шт.

21

47552729

Lower Grain Tank Cross Auger Drive

CHAIN

1шт.

22

185315C1

RIVET

3шт.

23

1303114C91

ELEVATOR CHAIN,C550, 112 Links x 41.4mm = 4636.8mm

1шт.

24

47438251

Grain Elevator

CONVEYOR

3шт.

25

47476137

Weld Assy, Elevator Head Drive

SPROCKET

2шт.

26

47549294

Weld Assy, Elevator Drive, 32T

SPROCKET

1шт.

27

47549293

Weld Assy, Elevator Drive, 27T

SPROCKET

1шт.

28

182837C2

CAP

Unloader Tube Outer

1шт.

29

86996213

IDLER,185.74mm OD

Belt Assy

1шт.

30

177195C1

PULLEY ASSY.

Idler, 8inch

1шт.

31

87668029

IDLER,73.64mm Idler Dia x 110.59mm OD x 20.78mm W

Flanged Idler

1шт.

32

1338456C1

IDLER

Idler Rear, 6inch

1шт.

33

87307506

BALL BEARING,82.54mm ID x 132.06mm OD x 22.86mm W

2шт.

34

87315088

BLADE

Chopper

12шт.

35

87315089

BLADE

Chopper End

1шт.

36

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

3шт.

37

84164540

RASP BAR

Without Spike Standard Wear

45шт.

38

278820A5

RASP BAR

Spike Extension Wear

57шт.

39

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

63шт.

40

87106338

BOLT

Tee

45шт.

41

87691372

EYEBOLT

Forged

6шт.

42

47609217

Grain Pan

DIVIDER

3шт.

43

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

44

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

1шт.

Выбрано товаров: 44
