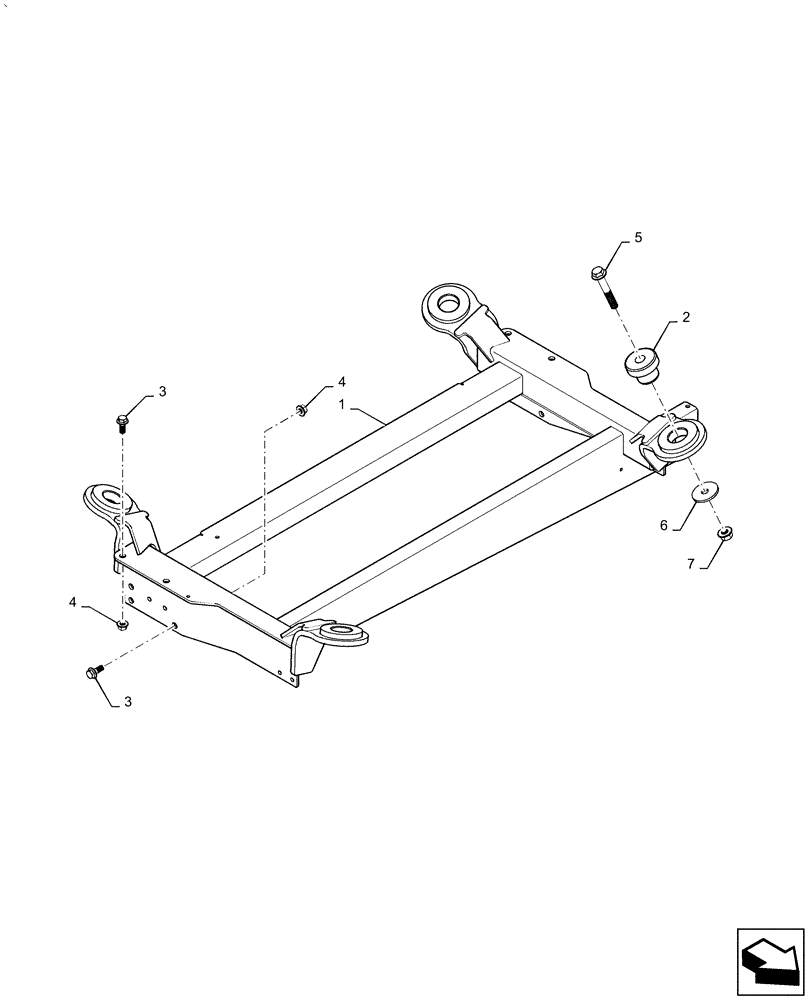

Запчасти Case IH AF4077 (90.150.BI) - MOUNT, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47511360

Weld Assy, Cab

SUPPORT

1шт.

2

47484911

Isolator

CAB

4шт.

3

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

12шт.

4

86512497

FLANGE NUT,M12 x 1.75, Cl 10

8шт.

5

87698850

BOLT,M16 x 100mm, Cl 10.9

4шт.

6

84017220

WASHER,16.5mm ID x 62.5mm OD x 5mm Thk

4шт.

7

87016581

FLANGE NUT,M16 x 2, CI 10

Prevailing Torque

4шт.
