(90.108.AC[01]) - DECALS, SAFETY

Запчасти Case IH AF4077 (90.108.AC[01]) - DECALS, SAFETY (90) - PLATFORM, CAB, BODYWORK AND DECALS

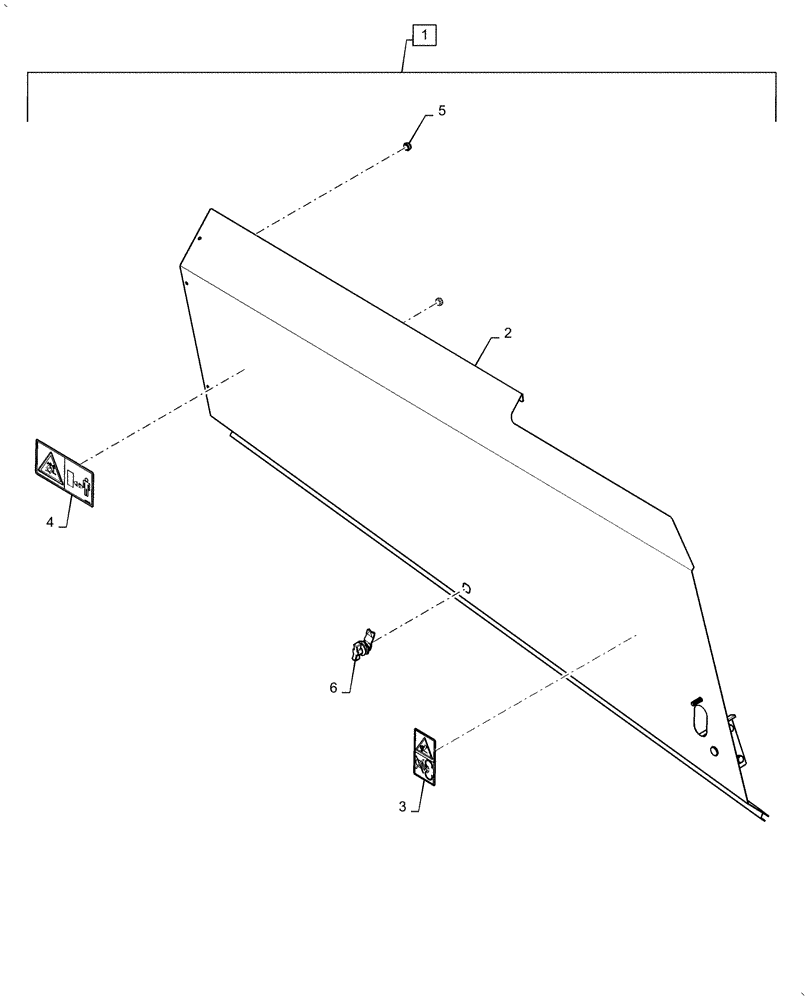

Схема запчастей Case IH AF4077 - (90.108.AC[01]) - DECALS, SAFETY (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
4
1
3
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47490988

Assy, Straw Spreader Drive, Incl 2 - 6

SHIELD

1шт.

2

NSS

NOT SOLD SEPARAT

Shield Weld Assy, Straw Spreader, Incl in 1

1шт.

3

84004734

WARNING DECAL

Caution

1шт.

4

84004739

DECAL

Caution, Flying Debris

1шт.

5

1321640C1

GROMMET

2шт.

6

182925A1

LOCK

Latch Assy, Nao

1шт.
