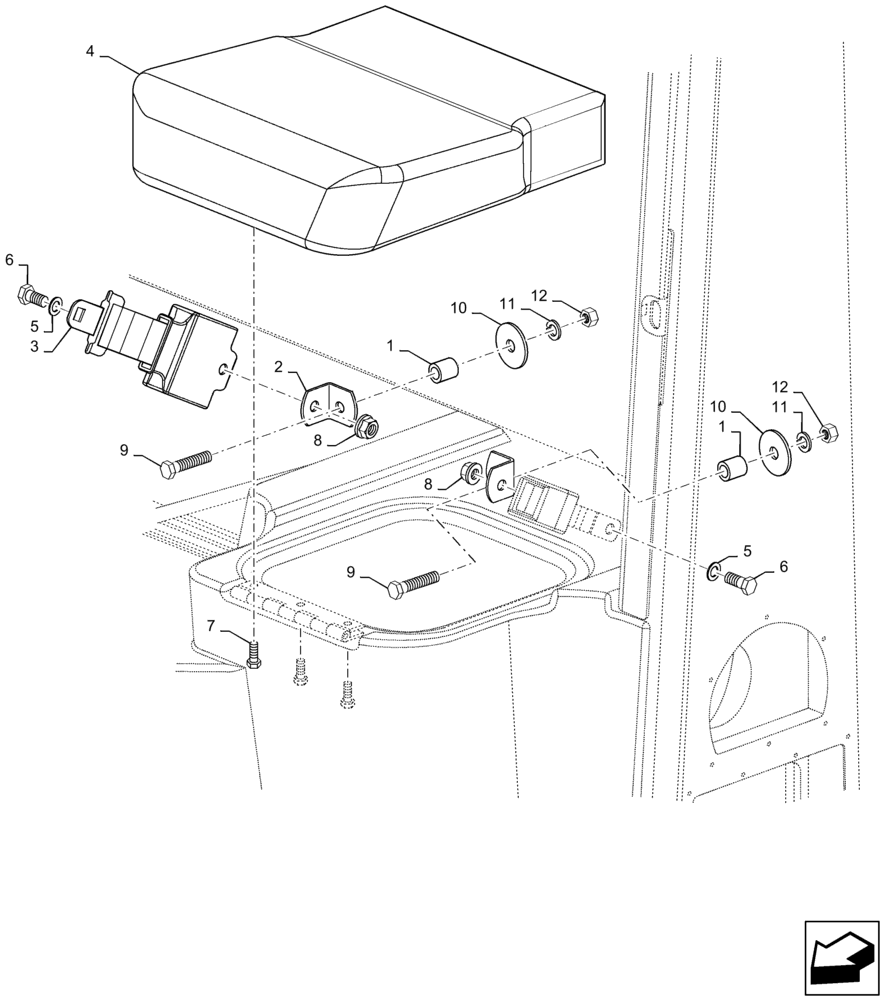

Запчасти Case IH AF4077 (88.100.90[01]) - SEAT BELT, SEAT INSTRUCTOR (88) - ACCESSORIES

1

224368A1

SPACER,0.546" ID x 0.840" OD x 0.984" OAL

2шт.

2

224809A1

SUPPORT

Bracket Angle

2шт.

3

224808A1

SAFETY BELT ,48mm W x 1219mm L

Seat

1шт.

4

84129538

SEAT CUSHION

Confetti Wheat

1шт.

5

495-81009

WASHER,.469" x 1" x .120"

2шт.

6

628-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

7

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

8

829-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 10

2шт.

9

628-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9, Full Thd

2шт.

10

495-91167

WASHER,13.49mm ID x 50.8mm OD x 3.4mm Thk

2шт.

11

492-11050

LOCK WASHER,1/2"

2шт.

12

829-1412

NUT,M12, Cl 10.9

2шт.
