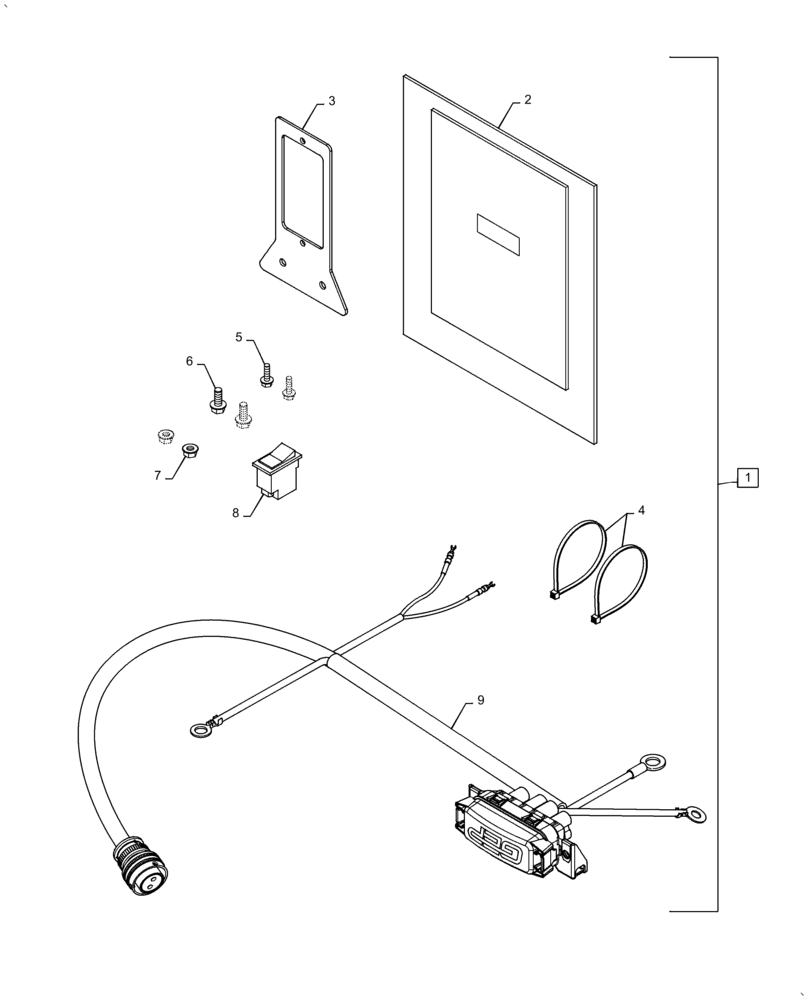

Запчасти Case IH AF4077 (88.100.73[01]) - DIA KIT, SIDE KNIFE (88) - ACCESSORIES

1

47703302

Side Knives MRR, Incl 2 - 9

DIA KIT, HARVESTER

1шт.

2

NSS

NOT SOLD SEPARAT

Package, Instruction, Side Knife, Incl in 1

1шт.

3

47702779

Mounting, Knives

PLATE

1шт.

4

86566990

CABLE TIE,292mm OAL x 4.8mm W

32шт.

5

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.

6

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

8

87608424

SWITCH ASSY

Rocker, Side Knife

1шт.

9

47703313

Side Knives MRR

WIRE HARNESS

1шт.
