Запчасти Case IH AF4077 (88.100.55[01]) - DIA KIT, HYDRAULIC REEL ELECTRICAL, USE FOR 2016 (88) - ACCESSORIES

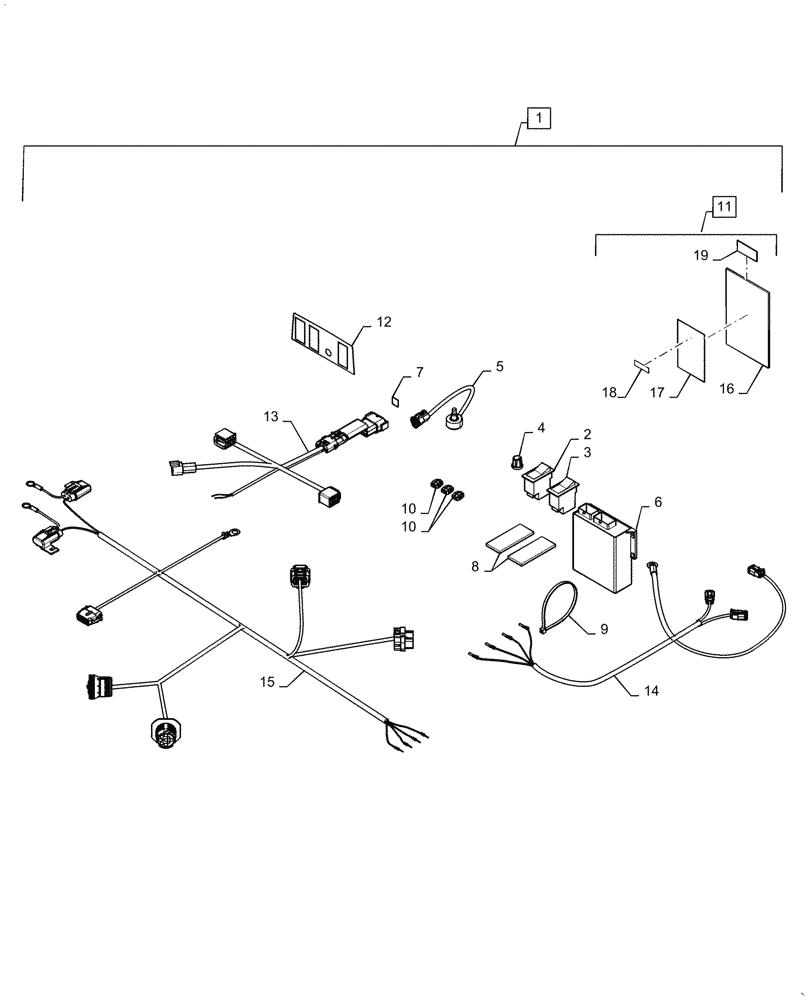

Схема запчастей Case IH AF4077 - (88.100.55[01]) - DIA KIT, HYDRAULIC REEL ELECTRICAL, USE FOR 2016 (88) - ACCESSORIES
17
8
10
12
1
6
18
3
5
7
9
13
16
2
19
4
14
10
11
15

Артикул

Название

Примечание

Количество

1

47743872

Hydraulic Reel Electrical, Incl 2 - 19

KIT

1шт.

2

109817A1

SWITCH

Rocker Reel

1шт.

3

112078A1

TOGGLE SWITCH

Rocker

1шт.

4

118780A1

KNOB

Console Potentiometer

1шт.

5

369794A1

POTENTIOMETER,10,000 Ohm

1шт.

6

47408829

ECU

1шт.

7

83883C1

SYMBOLS

Lens Snap

1шт.

8

87284035

FASTENER,25.4mm W x 76mm OAL

Strip Dual Lock

1шт.

9

86566990

CABLE TIE,292mm OAL x 4.8mm W

15шт.

10

84280824

WIRE CONNECTOR

Cable Splice

3шт.

11

47786856

Package Instruction Hydraulic Reel Electrical, Incl 16 - 19

KIT

1шт.

12

47743785

Console Reel Speed

DECAL

1шт.

13

47761144

Harness RH Console Box

WIRE

1шт.

14

47756470

Harness Hydraulic Valve

WIRE

1шт.

15

47756469

Harness

WIRE

1шт.

16

86588108

Wrapper Shrink, Use from 2016

KIT

1шт.

17

47775693

Hydraulic Reel Electrical, Use from 2016

INSTRUCTION

1шт.

18

86588125

INSTRUCTION

Plate Identity Part, Use from 2016

1шт.

19

86589460

BAG

Dessicant-One Unit, Use from 2016

1шт.

Выбрано товаров: 19
