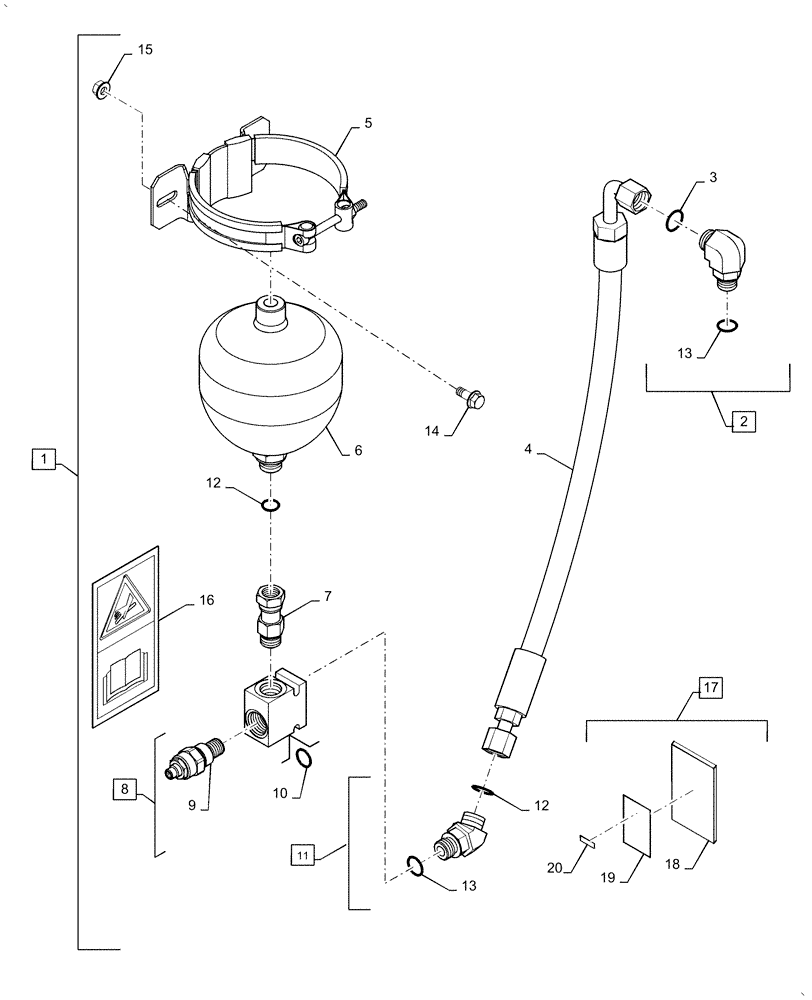

Запчасти Case IH AF4077 (88.100.35[01]) - DIA KIT, ACCUMULATOR, MOUNTING AND SYSTEM (88) - ACCESSORIES

1

47832640

Ride Control Accumulator, Incl 2 - 20

DIA KIT, HARVESTER

1шт.

2

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl 3, 13

1шт.

3

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

4

47611405

Assy, Accumulator

HOSE

1шт.

5

84133868

CLAMP

Assy, Accumulator Mounting

1шт.

6

87105673

ACCUMULATOR

1шт.

7

86974819

FITTING,3/4"-16 x 13/16"-16 ORFS

Connector

1шт.

8

47618626

Hydraulic Lift, Needle, Incl 9, 10

VALVE

1шт.

9

47442293

Needle, Cartridge

VALVE

1шт.

10

329484A1

SEAL KIT

1шт.

11

86512032

ELBOW

Incl 12, 13

1шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

13

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

14

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

2шт.

15

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

16

344946A1

WARNING DECAL

1шт.

17

47832700

Package, Accumulator Installation Manual, Incl 18 - 20

KIT

1шт.

18

86588108

Wrapper, Shrink

KIT

1шт.

19

47829075

Accumulator Package

INSTRUCTION

1шт.

20

86588125

INSTRUCTION

Label, Format

1шт.
