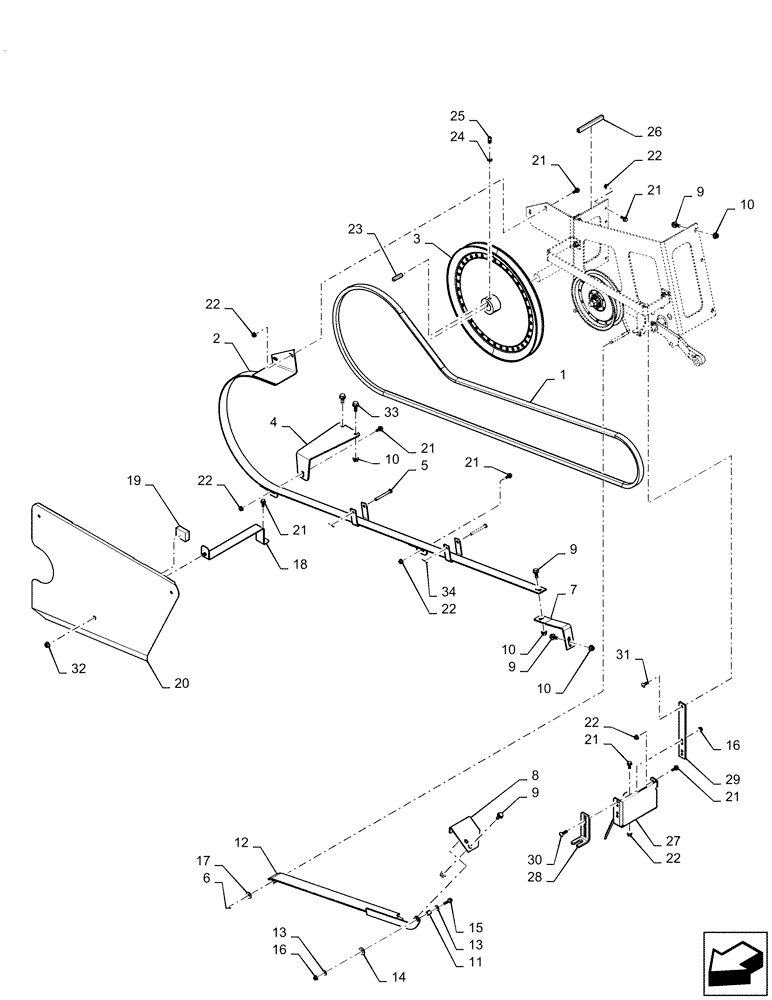

Запчасти Case IH AF4077 (80.175.AG[01]) - BELT DRIVE UNLOADER (80) - CROP STORAGE/UNLOADING

1

1989217C1

V-BELT,22.327 mm W x 3712.09 mm L

V-belt, Unloader Drive

1шт.

2

84355576

GUIDE

Assy, Unloader Drive Belt

1шт.

3

47537907

Assy, Unload Jackshaft

PULLEY

1шт.

4

84298288

BRACKET

Support, Unloader Belt Trap, Lower, Painted

1шт.

5

728-880

CLEVIS PIN,M8 x 80

2шт.

6

130003

COTTER PIN,3mm OD x 30mm OAL

Steel

1шт.

7

84357978

BRACKET

Support, Belt Guide Lower Rear

1шт.

8

84355530

GUIDE

Unloader Drive Belt, Painted

1шт.

9

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

Flange

8шт.

10

86050279

FLANGE NUT,M10 x 1.5, Cl 10

9шт.

11

87392240

SPACER,8.48mm ID x 12.7mm OD x 16.8mm L

1шт.

12

84355548

BRACKET

Support Assy, Unloader Drive Belt

1шт.

13

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

14

86625254

WASHER,13.5mm ID x 28mm OD x 2.5mm Thk

1шт.

15

87030775

BOLT,M8 x 38.1mm, Cl 10.9

Flange

1шт.

16

87681210

FLANGE NUT,M8 x 1.25, Cl 10

Prevailing Torque

3шт.

17

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

1шт.

18

84298295

BRACKET

Support Assy, Unloader Belt Shield, Painted

1шт.

19

187884C1

SEALING STRIP,50mm L

Cab Sill To Front Superintendent

1шт.

20

84357987

DEFLECTOR

Shield, Unloader Drive Belt

1шт.

21

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

11шт.

22

86507066

FLANGE NUT,M8 x 1.25, Cl 10

12шт.

23

84406850

KEY

Parallel

1шт.

24

84807411

THIN NUT,Thin, M10 x 1.5, Cl 04

Jam

3шт.

25

300483

SET SCREW,M10 x 25mm

Alloy Steel Blower

3шт.

26

1545944C1

SEAL

Trim

1шт.

27

47595071

Bracket, Grain Tank Unloader

SUPPORT

1шт.

28

47595076

Bracket, Grain Tank Unloader

SUPPORT

1шт.

29

47602720

Grain Tank Unloader

PLATE

1шт.

30

87682385

CARRIAGE BOLT,Sht Sq Nk, M8 x 30mm, Cl 10.9

2шт.

31

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

1шт.

32

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

1шт.

33

87698839

FLANGE BOLT,M10 x 40mm, Cl 10.9

1шт.

34

87016658

COTTER PIN

2шт.
