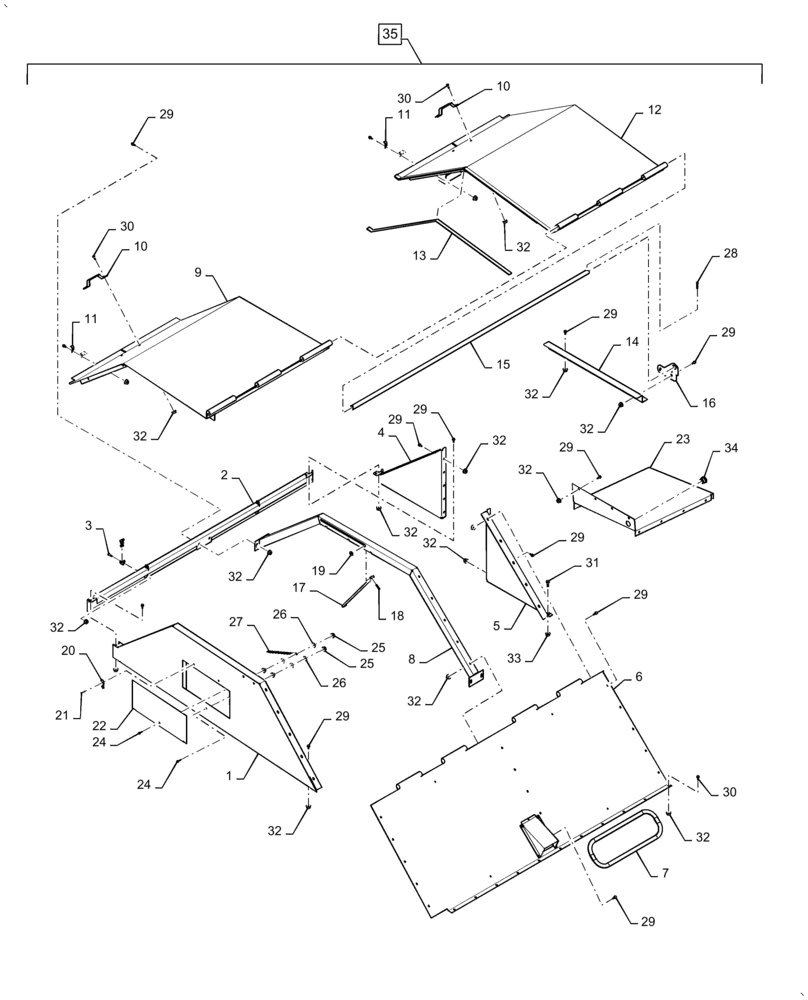

Запчасти Case IH AF4077 (80.150.AR[01]) - GRAIN TANK COVER (80) - CROP STORAGE/UNLOADING

1

47651204

Extension Weld Assy, RH

GRAIN TANK

1шт.

2

47474408

Extension Weld Assy, Rear

GRAIN TANK

1шт.

3

87681207

BOLT,M8 x 24.1mm, Cl 10.9

4шт.

4

47474421

Extension, LH, Rear

GRAIN TANK

1шт.

5

47474419

Extension, LH, Front

GRAIN TANK

1шт.

6

47656970

Weld Assy, Front, Grain Tank

COVER

1шт.

7

47791984

Grain Tank Observation

GLASS

1шт.

8

47651191

Weld Assy, Grain Tank

COVER

1шт.

9

47651173

Access Weld Assy, LH, Rear

COVER

1шт.

10

47464322

Door

HANDLE

2шт.

11

764071C2

BRACKET

Trim Hook

4шт.

12

47651165

Access Weld Assy, RH, Rear

COVER

1шт.

13

1340328C1

SEAL ASSY.

Blower Cover

1шт.

14

47473100

Bracket, RH, Grain Tank Cover

SUPPORT

1шт.

15

47473124

Grain Tank Cover

HINGE

1шт.

16

47495090

Hinge

SUPPORT

2шт.

17

47508139

Grain Tank Cover

ROD

2шт.

18

394818

COTTER PIN,M5 x 25

4шт.

19

12646901

WASHER,12.2mm ID x 8mm OD x 3mm Thk

4шт.

20

167800C1

CLIP

Fastener, Door Retain

2шт.

21

445394

RIVET,Pop, 3/16" x 1/2" OAL

2шт.

22

47461537

Access, Grain Tank

COVER

1шт.

23

47495101

Front, LH, Grain Tank

COVER

1шт.

24

87670758

FLANGE BOLT,M6 x 31.6mm, Cl 10.9

2шт.

25

86050300

FLANGE NUT,M6 x 1.0, Cl 10

4шт.

26

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

27

167570C1

CHAIN,203.2mm L

1шт.

28

130011

COTTER PIN,M5 x 40

2шт.

29

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

89шт.

30

87681207

BOLT,M8 x 24.1mm, Cl 10.9

Flange

15шт.

31

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

1шт.

32

86507066

FLANGE NUT,M8 x 1.25, Cl 10

110шт.

33

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

34

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

1шт.

35

425252106

Grain Tank, Incl 1 - 34

COVER

1шт.
