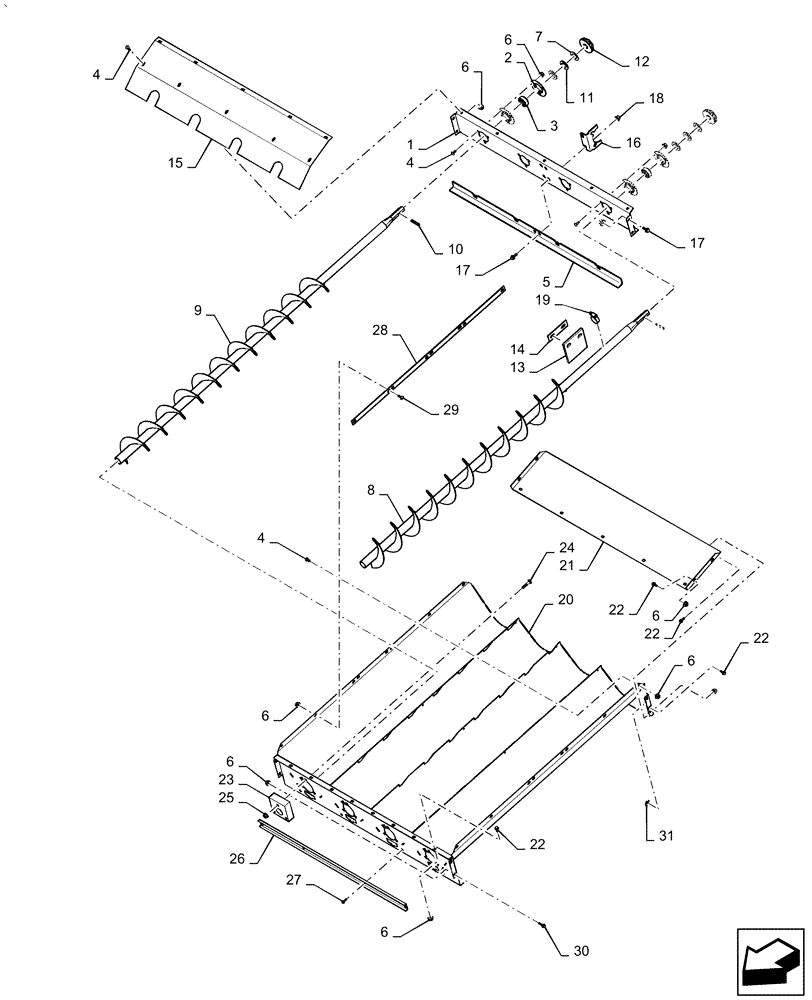

Запчасти Case IH AF4077 (74.140.CM) - AUGER BED, AUGER BED (74) - CLEANING

1

47438991

Auger Drive Gears

SUPPORT

1шт.

2

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

Spherical Housing

8шт.

3

87650438

BALL BEARING,22.25mm Hex x 52mm OD x 25.4mm W

Shaker Shaft

4шт.

4

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

19шт.

5

47438992

Auger Support

ANGLE

1шт.

6

86507066

FLANGE NUT,M8 x 1.25, Cl 10

49шт.

7

86624175

WASHER,1.16" ID x 2" OD x 0.06" Thk

4шт.

8

47553421

Assy, LH Rotation

AUGER

1шт.

9

47553422

Weld Assy, RH Rotation

AUGER

3шт.

10

412689

LOCK PIN,8mm OD x 50mm L, Slotted

Spring

4шт.

11

81863620

WASHER,29mm ID x 50mm OD x 4mm Thk

8шт.

12

87375653

GEAR

Bevel Spreader Drive

4шт.

13

47438988

Flap, LH Gear Spreader

FLAP

1шт.

14

47554092

Grain Spreader Strip

BAR

1шт.

15

47438998

Auger Drive

SUPPORT

1шт.

16

47438995

Auger Drive Center Bearing

SUPPORT

1шт.

17

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

6шт.

18

86050279

FLANGE NUT,M10 x 1.5, Cl 10

6шт.

19

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

Gear

2шт.

20

47438614

Trough Weld Assy, Bed

TROUGH

1шт.

21

47438624

Chaffer Front Seal

SHEET

1шт.

22

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

21шт.

23

193414C2

BOARD

Block, Front Auger Bearing

4шт.

24

87682396

CARRIAGE BOLT,M10 x 1.5 x 50mm, Cl 10.9

12шт.

25

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

12шт.

26

47603418

Auger Trough Clean Out

CHANNEL

1шт.

27

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

4шт.

28

47441673

Auger Trough

STRAP

2шт.

29

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

9шт.

30

87030775

BOLT,M8 x 38.1mm, Cl 10.9

Flange

4шт.

31

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

4шт.
