Запчасти Case IH AF4077 (74.140.CI) - CLUTCH ASSY, ELEVATOR JACKSHAFT (74) - CLEANING

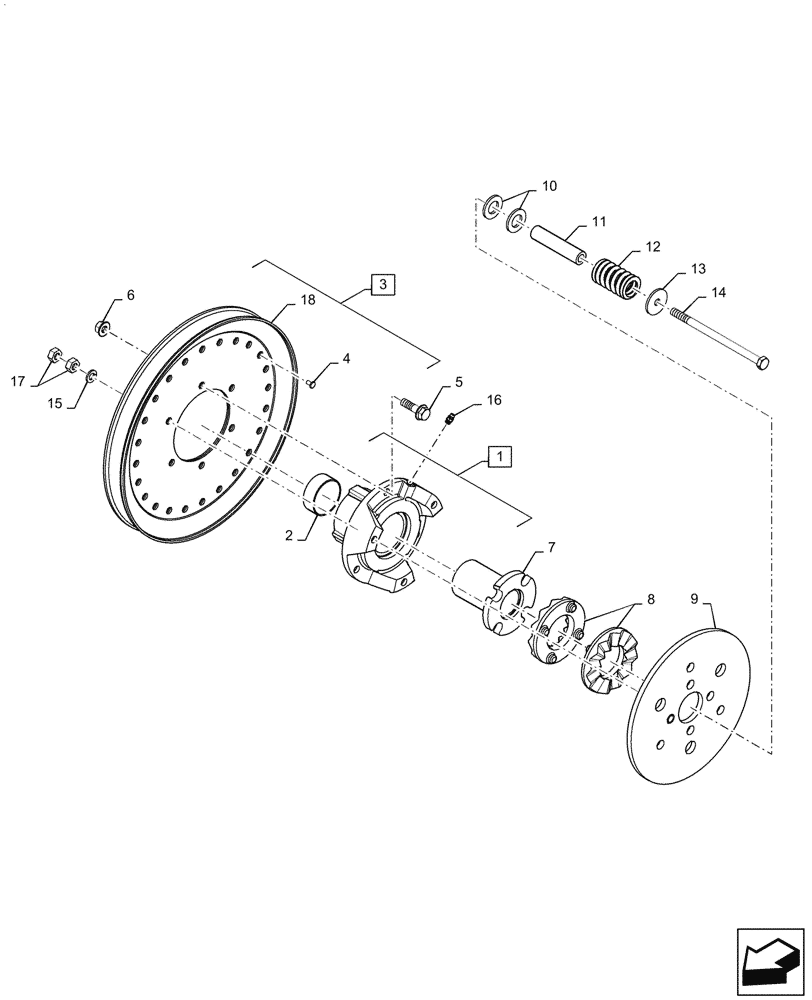

Схема запчастей Case IH AF4077 - (74.140.CI) - CLUTCH ASSY, ELEVATOR JACKSHAFT (74) - CLEANING
2
12
11
5
7
16
1
17
3
18
13
9
6
10
14
8
4
15

Артикул

Название

Примечание

Количество

1

84164210

ASSEMBLY

Hub, Elevator Jackshaft Primer, Incl 2

1шт.

2

84160046

BRONZE BUSHING

Hub, Elevator Jackshaft

2шт.

3

87757837

PULLEY

Assy, Elevator Jackshaft, Incl 4, 18

1шт.

4

47-38

RIVET,FH, 3/16" x 1/2"

24шт.

5

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

3шт.

6

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

3шт.

7

47953479

Elevator Rachet Clutch, Use from 2016

HUB

1шт.

8

168370C2

RATCHET,Clutch Slip, 50.04mm ID x 94.49mm OD

Clutch

2шт.

9

47549266

Clutch Ratchet

PLATE

1шт.

10

495-11081

WASHER,3/4", SAE

Use for 2015

6шт.

10

495-11081

WASHER,3/4", SAE

Use from 2016

3шт.

11

47955834

Elevator Jackshaft, Use from 2016

BUSHING

3шт.

12

84301305

COMPRESSION SPRING

Elevator Clutch, Use for 2016

3шт.

12

47994453

Elevator Clutch, Use from 2017

3шт.

13

495-81143

WASHER,13/32" x 1 1/2" x .120"

3шт.

14

814-10170

BOLT,Hex, M10 x 1.5 x 170mm, Cl 8.8

3шт.

15

87613214

WASHER,0.41" ID x 1" OD x 0.18" Thk

Use from 2016

3шт.

16

219-87

LUBE NIPPLE,1/4" - 28 NPTF

Fitting

1шт.

17

100016

NUT,M10 x 1.5, Cl 8

6шт.

18

183326C1

PULLEY

2шт.

Выбрано товаров: 20
