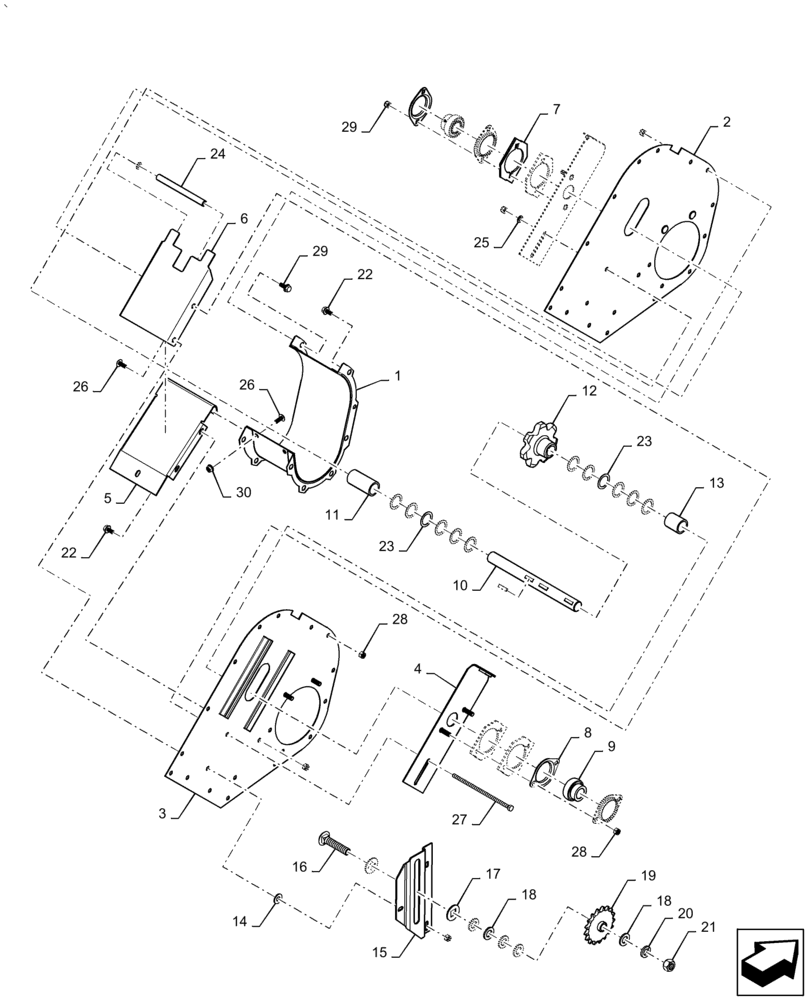

Запчасти Case IH AF4077 (74.140.AK) - HEAD ASSY, TAILINGS ELEVATOR (74) - CLEANING

1

47424450

Head, Trough Weld Assy

TROUGH

1шт.

2

47423602

Side Weld Assy, LH, Head, Tailings

MEMBER

1шт.

3

47423219

Side Weld Assy, RH, Head, Tailings

MEMBER

1шт.

4

47425088

Weld Assy, Head Shaft

SUPPORT

2шт.

5

47425152

Bottom, Tailings Elevator Head

SUPPORT

1шт.

6

47425082

Tailings Elevator Head, False

BOTTOM

1шт.

7

47425144

Spacer

PLATE

4шт.

8

86548974

FLANGE,Bearing

Spherical

4шт.

9

325103

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

10

47961121

Tailings Elevator Head, Use from 2016

SHAFT

1шт.

11

47440444

Pipe

SPACER

1шт.

12

47843378

Headshaft, Tailings

SPROCKET

1шт.

13

47440446

Pipe

SPACER

1шт.

14

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.

15

47423627

Bracket, Elevator Chain Tightener

SUPPORT

1шт.

16

433-1048

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3", Gr 5

1шт.

17

498-81010

SQ HOLE WASHER,16.66mm ID x 38.1mm OD x 2.67mm Thk

2шт.

18

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

5шт.

19

298009A1

DRIVE SPROCKET

Tightener

1шт.

20

492-11062

BEARING WASHER,5/8"

1шт.

21

425-1010

NUT,5/8"-11, G5

1шт.

22

87681207

BOLT,M8 x 24.1mm, Cl 10.9

Flange

3шт.

23

412568

WASHER,27mm ID x 37mm OD x 1mm Thk

12шт.

24

47440448

SPACER

1шт.

25

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

26

847-3820

SERRATED SCREW,M8 x 20mm, Cl 10.9

4шт.

27

87690472

BOLT,Hex, M8 x 180mm, Cl 8.8

1шт.

28

86629542

NUT,M8 x 1.25, Cl 8.8

Prevailing Torque, All Material

13шт.

29

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

3шт.

30

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.
