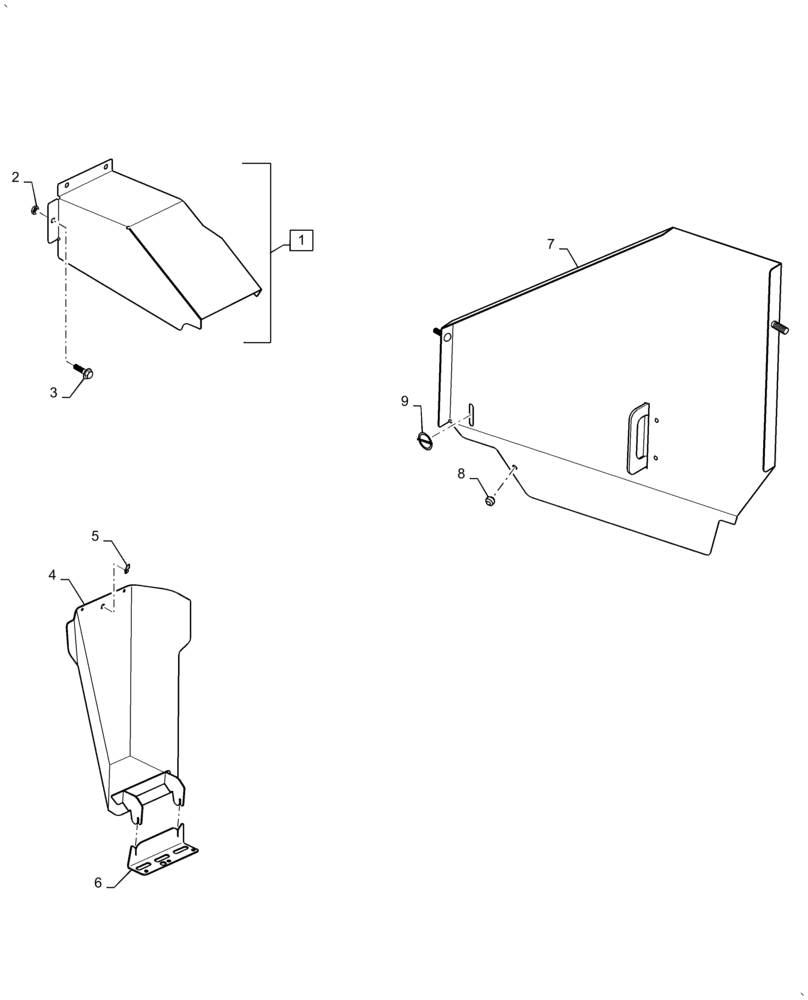

Запчасти Case IH AF4077 (74.130.AJ[02]) - SHIELD, RH FAN DRIVE BELT (74) - CLEANING

1

47706030

Assy, Feeder Idler, RH, Incl 2

SHIELD

1шт.

2

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

3шт.

3

87698833

BOLT,M8 x 33.1mm, Cl 10.9

3шт.

4

47719411

Weld Assy, RH, Inlet Fan

SHIELD

1шт.

5

182925A1

LOCK

Latch Assy

1шт.

6

47717736

RH, Inlet Fan, Shield

TUBE

1шт.

7

47708476

Weld Assy, RH, Feeder Drive

SHIELD

1шт.

8

1321640C1

GROMMET

1шт.

9

86508947

LINCH PIN,18.8mm OD

Linch

1шт.
