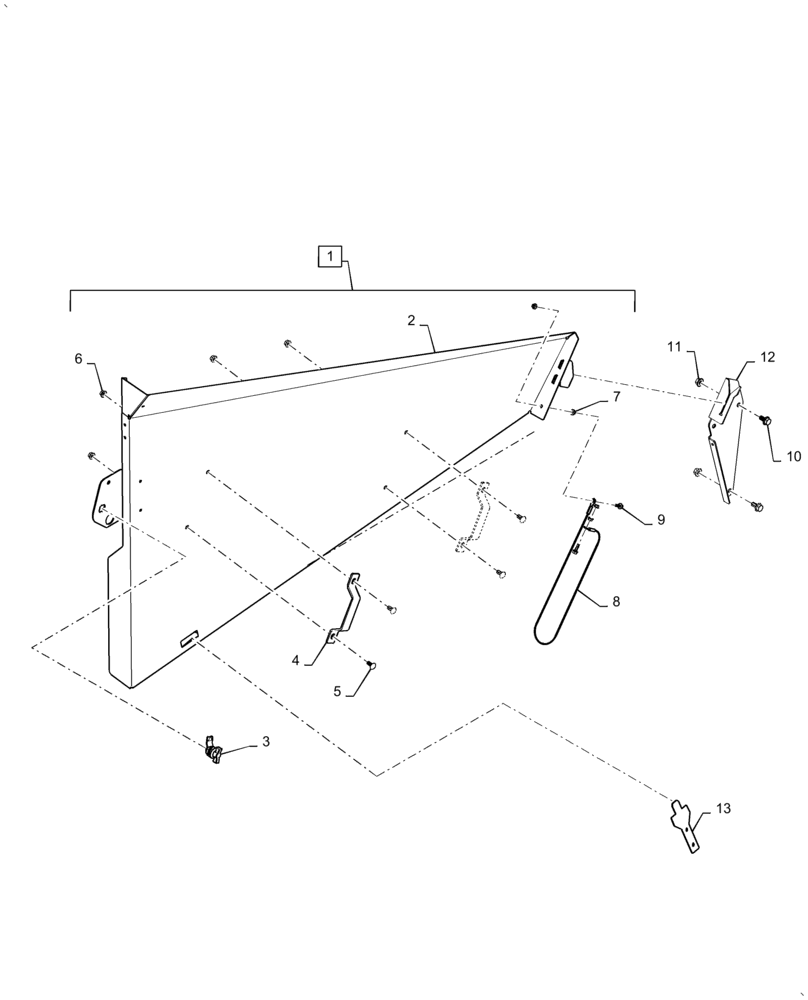

Запчасти Case IH AF4077 (74.125.AC[02]) - SHIELD ASSY, RH REAR (74) - CLEANING

1

47514793

Assy, RH Rear, Incl 2 - 9

SHIELD

1шт.

2

47514873

RH Rear

SHIELD

1шт.

3

182925A1

LOCK

Latch Assy

1шт.

4

87735697

LATCH

Handle, Door

2шт.

5

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

4шт.

6

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

7

86050300

FLANGE NUT,M6 x 1.0, Cl 10

4шт.

8

132657A2

CABLE

1шт.

9

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

10

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

3шт.

11

86050279

FLANGE NUT,M10 x 1.5, Cl 10

3шт.

12

47682630

RH Rear Shield

SUPPORT

1шт.

13

47682632

Bracket RH Rear Shield

SUPPORT

1шт.
