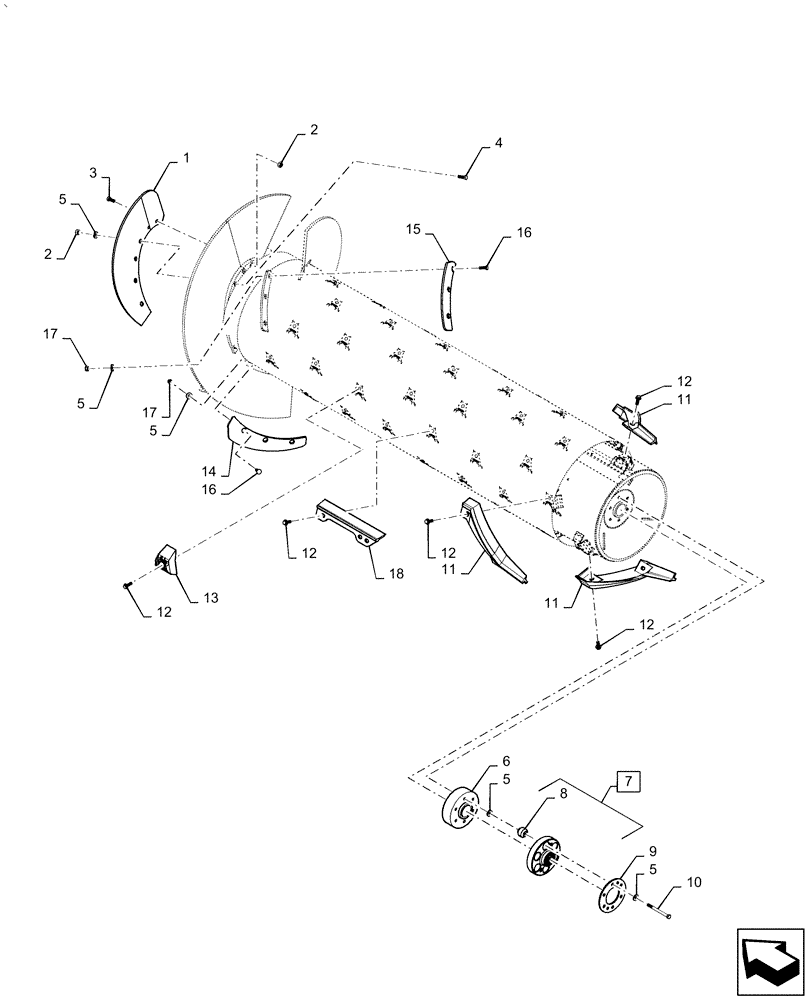

Запчасти Case IH AF4077 (66.331.AK[03]) - ROTOR GRAIN (66) - THRESHING

1

86992112

STEEL FLIGHT

AFX Rotor Inlet 2366

2шт.

2

199528A1

NUT

Prevailing Torque

12шт.

3

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.

4

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.

5

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

32шт.

6

84298180

SPACER

Rotor Drive Coupler

1шт.

7

1345307C1

COUPLING

Rotor Drive Assembly, Incl 8

1шт.

8

1345304C1

COUPLING

Hub, Rotor Drive

1шт.

9

87363446

PLATE

Rotor Load Ring

1шт.

10

326-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 8

6шт.

11

1317690C1

ANGLE

Kicker

3шт.

12

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

63шт.

13

84164540

RASP BAR

W/O Spike, Std Wear

51шт.

14

84162867

STEEL FLIGHT

Extension, Inlet

2шт.

15

84162623

STEEL FLIGHT

Extension, Intermediate

2шт.

16

87314103

PLOW BOLT,M12 x 1.75 x 40mm, Cl 10.9

12шт.

17

412672

NUT,Hex, M12 x 1.75, Cl 10

12шт.

18

1318976C2

BAR,Straight Seperator

Straight Separator

3шт.
