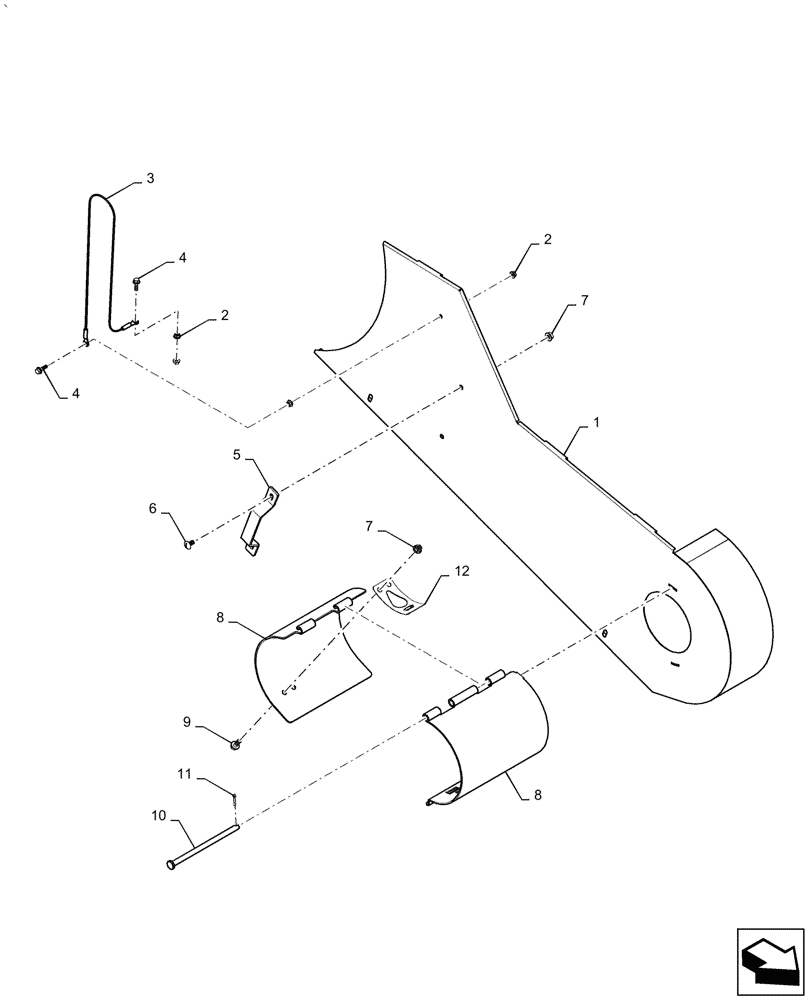

Запчасти Case IH AF4077 (60.120.AI[07]) - ACCESS COVER, FEEDER, DRIVE - 60 IN, STANDARD (60) - PRODUCT FEEDING

1

47664098

Access, Feeder Drive

COVER

1шт.

2

86050300

FLANGE NUT,M6 x 1.0, Cl 10

4шт.

3

132657A2

CABLE

1шт.

4

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

5

87686906

LATCH

Handle, Door

1шт.

6

847-3816

SERRATED SCREW,Sl Truss, M8 x 16mm, Cl 10.9

2шт.

7

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

8

47664107

Jackshaft, RH, Upper

SHIELD

1шт.

9

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

2шт.

10

84329842

PIN,10mm OD x 229.22mm L

Clevis, Use for 2016

1шт.

10

86605626

CLEVIS PIN,M10 x 150

Use from 2017

1шт.

11

130003

COTTER PIN,3mm OD x 30mm OAL

Steel

1шт.

12

86638316

LATCH

1шт.
