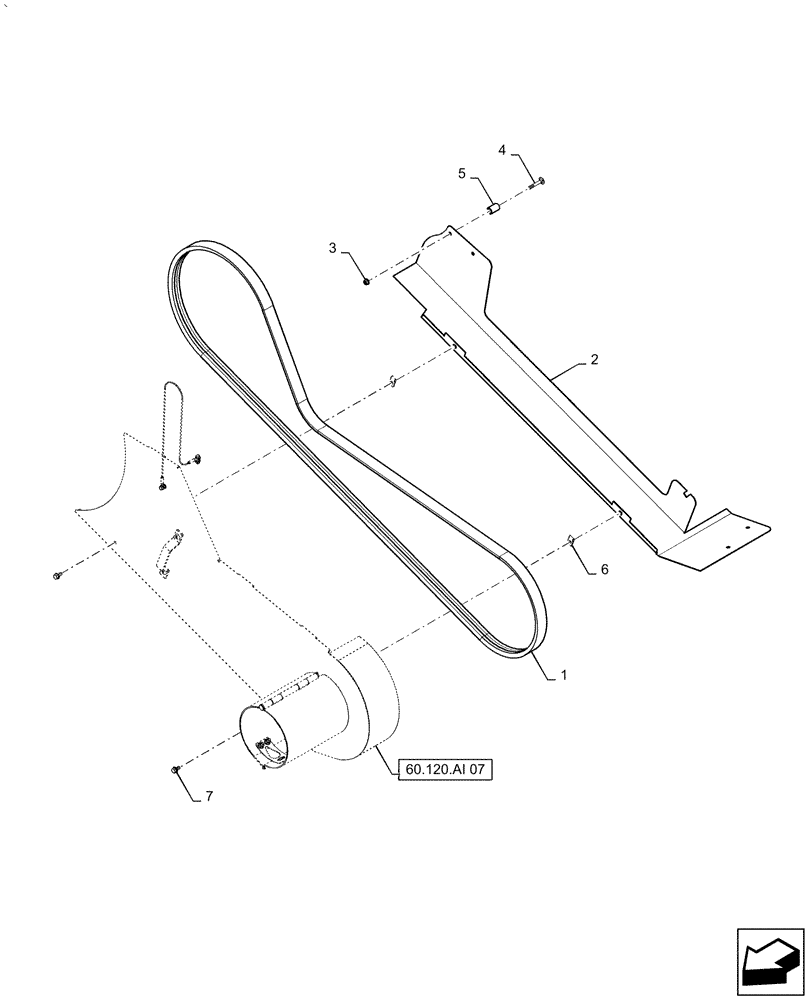

Запчасти Case IH AF4077 (60.120.AI[06]) - SHIELD, HEADER, DRIVE, STANDARD (60) - PRODUCT FEEDING

1

47517698

V-belt, Header Drive, Grain, Use for 2015

BELT

1шт.

1

47581837

Header Drive, Corn, Use from 2016

V-BELT

1шт.

2

47630405

Assy, Feeder Drive

SHIELD

1шт.

3

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

4

86559150

CARRIAGE BOLT,Sht Nk, M8 x 50mm, Cl 8.8

2шт.

5

84330962

SPACER

2шт.

6

833-41308

SPRING NUT,M8, U

2шт.

7

87681207

BOLT,M8 x 24.1mm, Cl 10.9

Flange

2шт.
