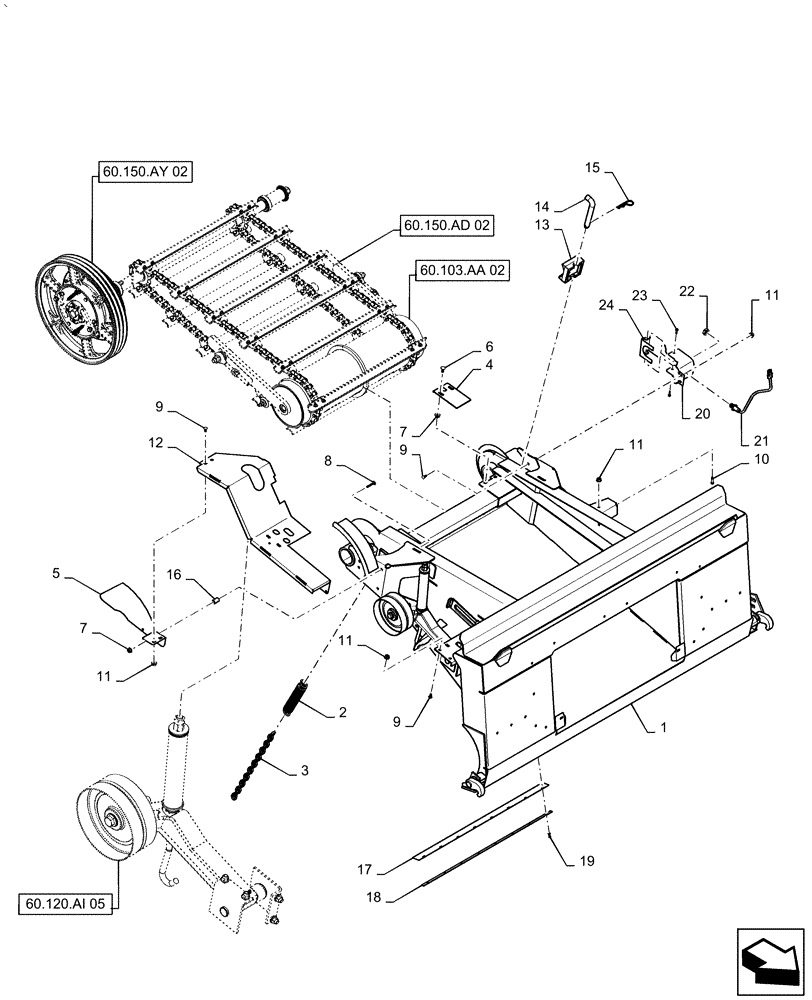

Запчасти Case IH AF4077 (60.110.AF[04]) - FEEDER ASSY, STANDARD (60) - PRODUCT FEEDING

1

47721368

Weld Assy, Feeder

HOUSING

1шт.

2

635503R1

SPRING,148.8mm Free Length

2шт.

3

167570C1

CHAIN,203.2mm L

2шт.

4

87748011

STRIPPER

Feeder Pivot

2шт.

5

87712040

COVER ASSY

Shield, Feeder Drive

1шт.

6

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

4шт.

7

825-51410

FLANGE NUT,M10, Flg Ser

4шт.

8

86559150

CARRIAGE BOLT,Sht Nk, M8 x 50mm, Cl 8.8

2шт.

9

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

6шт.

10

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

11

86507066

FLANGE NUT,M8 x 1.25, Cl 10

9шт.

12

47630401

Feeder Drive, Use for 2015

SHIELD

1шт.

12

47919965

Feeder Drive, Use from 2016

SHIELD

1шт.

13

1989327C3

RETAINER

Block

2шт.

14

47553984

Feeder Pivot

PIN

2шт.

15

1978738C1

HAIR PIN COTTER

2шт.

15

2362

HAIR PIN COTTER,Int, 7/16" x .177"

1шт.

16

84330962

SPACER

2шт.

17

47630423

Feeder Rear

SEAL

1шт.

18

84348086

STRIP

Seal

1шт.

19

151-559

RIVET,Pop, 4.75mm OD x 12.7mm L

8шт.

20

47509060

Bracket, Feeder Speed Sensor

SUPPORT

1шт.

21

245193C2

SENSOR

Gage

1шт.

22

425-1512

JAM NUT,Jam, 3/4"-10, G5

1шт.

23

87010469

SELF-TAP SCREW,Hex, M6.3 x 25mm

2шт.

24

47509061

Feeder Speed Sensor

SHIELD

1шт.
