Запчасти Case IH AF4077 (55.514.AA[03]) - CAB, WIRING ASSY, HEATER, AIR CONDITIONED, USE FOR 2016 (55) - ELECTRICAL SYSTEMS

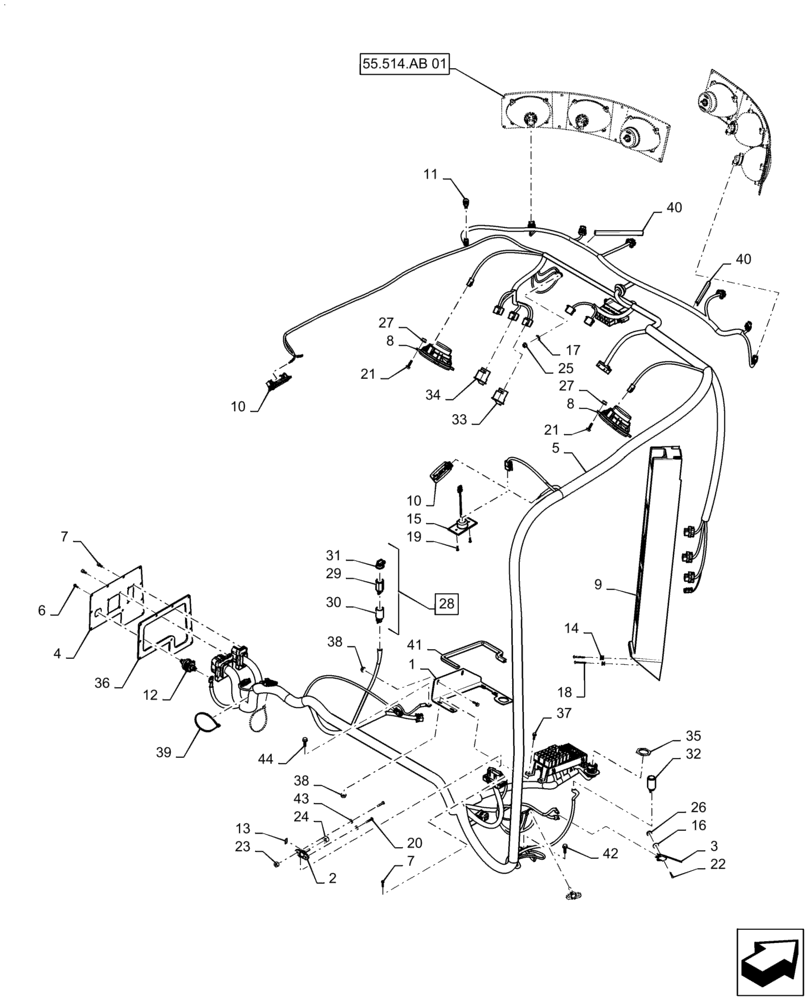

Схема запчастей Case IH AF4077 - (55.514.AA[03]) - CAB, WIRING ASSY, HEATER, AIR CONDITIONED, USE FOR 2016 (55) - ELECTRICAL SYSTEMS
40
40
35
36
30
8
33
32
17
43
41
37
12
10
14
38
8
10
13
42
20
15
29
19
28
22
6
26
23
16
38
25
27
55.514.ab 01
4
34
24
27
5
3
1
18
31
2
9
7
39
7
44
21
11
21

Артикул

Название

Примечание

Количество

1

47593379

Base, Fuse Mount

PLATE

1шт.

2

303717A1

JUNCTION BLOCK

2шт.

3

60-6515T1

SWITCH

Mechanical

1шт.

4

47558909

Cab LH Electric Access

PLATE

2шт.

5

47730960

Cab Main

WIRE HARNESS

1шт.

6

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

12шт.

7

86625213

HEX SOC SCREW,M5 x 12mm, Cl 8.8

12шт.

8

375389A1

SPEAKER

2шт.

9

47567354

A-Post, 2 Display Assy

MODULE

1шт.

10

429726A1

COURTESY LIGHT

Dome

2шт.

11

1983341C1

SWITCH

Mechanical Differential Lock Brake

1шт.

12

190158A1

BLOCK

1шт.

13

83822C1

TAPE

2шт.

14

R53000

GROMMET

2шт.

15

47466806

CONSOLE LAMP,LED, 12V, Amber

1шт.

16

495-31012

WASHER,#4

2шт.

17

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

18

260-13524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

2шт.

19

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

2шт.

20

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

4шт.

21

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

8шт.

22

463-10412

SCREW,Hex Hd, #4-40 x 3/4"

2шт.

23

87016570

NUT

4шт.

24

425-106

NUT,3/8"-16, Cl 5

2шт.

25

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

26

225-14104

NUT,#4-40

2шт.

27

231-51409

SERRATED NUT,Flg, USR, #10-24

10шт.

28

86626904

OUTLET

Socket, Power Assy, Incl 29 - 31

1шт.

29

308904A1

CIGARETTE LIGHTER

Power Outlet

1шт.

30

308905A1

CIGARETTE LIGHTER

Outlet Retainer

1шт.

31

190812A1

COVER

1шт.

32

371831A1

CIGAR LIGHTER

Casco Center Push

1шт.

33

127335A1

SWITCH

Rocker, Lights

1шт.

34

279263A1

FLASHER SWITCH

Rocker, Hazard

1шт.

35

87737472

JAM NUT,Hex, M35 x 1

Connector, Wire

1шт.

36

47497173

Access Plate

GASKET

1шт.

37

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

4шт.

38

86050300

FLANGE NUT,M6 x 1.0, Cl 10

6шт.

39

86566990

CABLE TIE,292mm OAL x 4.8mm W

Nylon Black

3шт.

40

135370A1

PROTECTION STRIP

Trim

2шт.

41

87063C3

SEAL

Trim

1шт.

42

87698833

BOLT,M8 x 33.1mm, Cl 10.9

1шт.

43

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

44

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

Выбрано товаров: 44
