Запчасти Case IH AF4077 (55.404.CN[02]) - HARNESS, SERVICE LIGHT, GRAIN TANK (55) - ELECTRICAL SYSTEMS

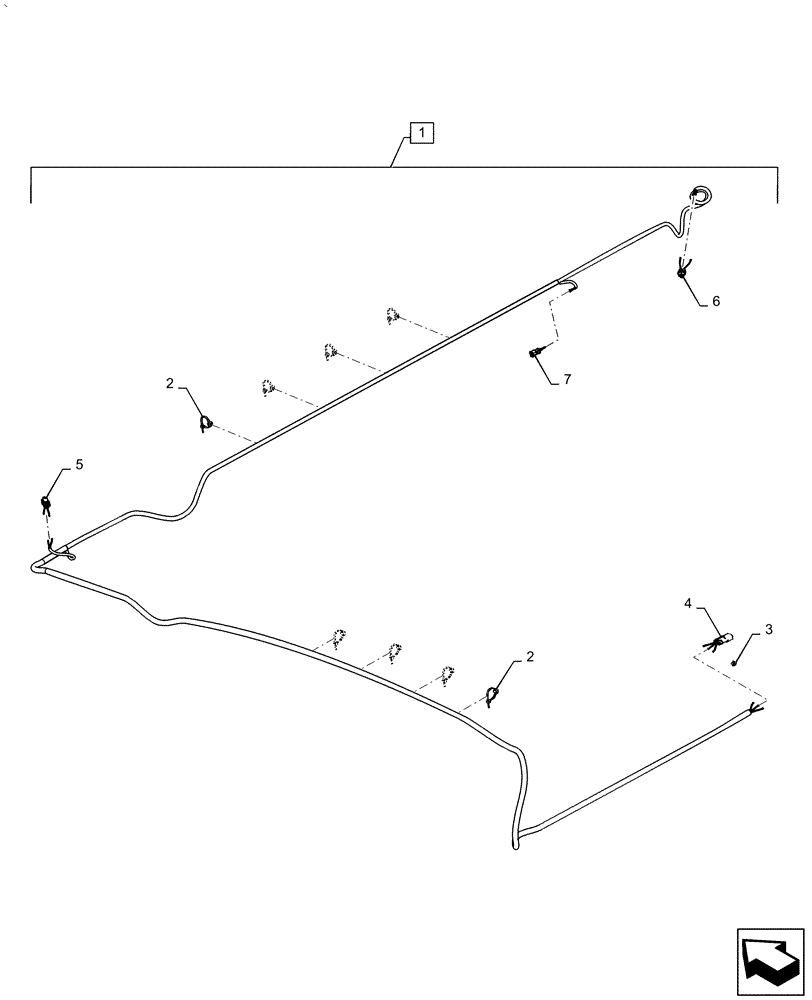

Схема запчастей Case IH AF4077 - (55.404.CN[02]) - HARNESS, SERVICE LIGHT, GRAIN TANK (55) - ELECTRICAL SYSTEMS
7
3
2
4
6
1
2
5

Артикул

Название

Примечание

Количество

1

47661540

Grain Tank, Incl 2 - 7

WIRE HARNESS

1шт.

2

NSS

NOT SOLD SEPARAT

Mount Assy, Fir Tree, Incl in 1

18шт.

3

NSS

NOT SOLD SEPARAT

Connector, Wire, Double X-Mas Tree Clip, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Connector, Electric, Apex 2.8_3W_Tab HSG, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Connector, Wire, M-Pack .280_2W_REC HSG, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Connector, Electric, M.Pack_2W_REC HSG, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Electric, W.Pack_3W_HERM HSG, Incl in 1

1шт.

Выбрано товаров: 7
