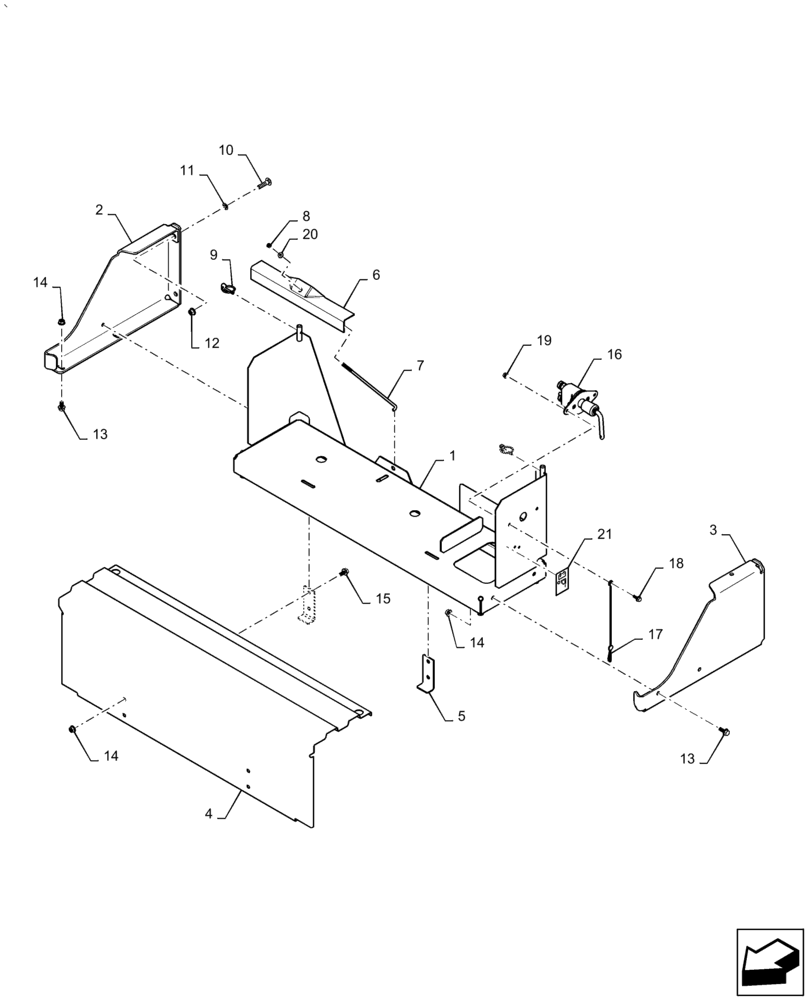

Запчасти Case IH AF4077 (55.302.AK) - BATTERY, TOOL BOX, SUPPORT (55) - ELECTRICAL SYSTEMS

1

47474630

Weld Assembly, Battery Box Platform

SUPPORT

1шт.

2

47474637

Bracket, Battery Platform Front

SUPPORT

1шт.

3

47474639

Bracket, Battery Platform Rear

SUPPORT

1шт.

4

47474646

Battery Box

COVER

1шт.

5

47474649

Battery Box Cover

STRAP

2шт.

6

47474652

Bracket, Battery Hold Down

SUPPORT

1шт.

7

47474655

Battery Hold Down

BOLT

1шт.

8

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

9

A33497

LINCH PIN,4.76mm OD Pin

2шт.

10

87682394

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 10.9

4шт.

11

87698854

NUT,M10

4шт.

12

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

13

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

8шт.

14

86507066

FLANGE NUT,M8 x 1.25, Cl 10

12шт.

15

87681207

BOLT,M8 x 24.1mm, Cl 10.9

Flange

4шт.

16

47493762

BATTERY CUT-OUT

Battery Isolator

1шт.

17

409114A1

CABLE

Nylon Lanyard

1шт.

18

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

19

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

2шт.

20

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

21

47469703

Battery Switch

DECAL

1шт.
