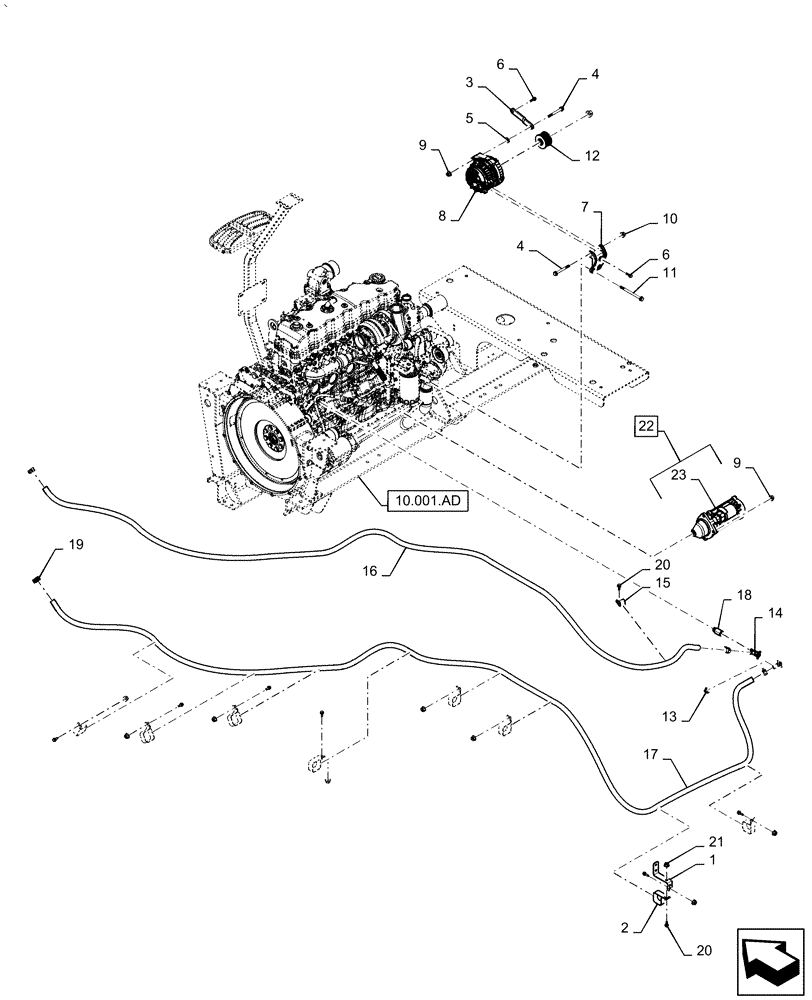

Запчасти Case IH AF4077 (55.301.AA) - ALTERNATOR (55) - ELECTRICAL SYSTEMS

1

47557147

Bracket, Heater Line Routing

SUPPORT

1шт.

2

1301387C2

CLIP

Clamp, Square

8шт.

3

84530585

BRACKET

Alternator Mount

1шт.

4

87695408

BOLT,M10 x 1.5 x 100.4mm OAL, Cl 10.9

Flange

2шт.

5

3120737R1

WASHER,10.8mm ID x 25mm OD x 5mm Thk

1шт.

6

87698833

BOLT,M8 x 33.1mm, Cl 10.9

5шт.

7

84305176

MOUNT

Alternator, Use for 2015

1шт.

7

47862300

Alternator, Use from 2016

MOUNT

1шт.

8

87740116

ALTERNATOR,12V, 150A

1шт.

9

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

10

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

1шт.

11

87681213

BOLT,Hex, M10 x 140mm, Cl 10.9

Flange

2шт.

12

84174273

PULLEY

Alternator

1шт.

13

87036949

REDUCER,1/2"-14 Male NPTF x 3/8"-18 Female NPTF

Bushing

1шт.

14

301803R1

SHUT-OFF VALVE

Power Take Off Drain

2шт.

15

86625038

CLAMP,25.4mm, Coat, 13.5mm Bolt Hole, P Type

Closed

1шт.

16

47581967

Heater, Supply

HOSE

1шт.

17

47581966

Heater, Return

HOSE

1шт.

18

47584137

ADAPTER

1шт.

19

1954736C1

HOSE CLAMP,#24

Ceramic-Tile Base

4шт.

20

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

6шт.

21

86507066

FLANGE NUT,M8 x 1.25, Cl 10

8шт.

22

87577368

STARTER MOTOR,3 hole

Incl 23

1шт.

23

82012426

KIT

Solenoid Assy

1шт.
