Запчасти Case IH AF4077 (55.101.AC[04]) - FRONT, HARNESS CHASSIS, USE FOR 2016 (55) - ELECTRICAL SYSTEMS

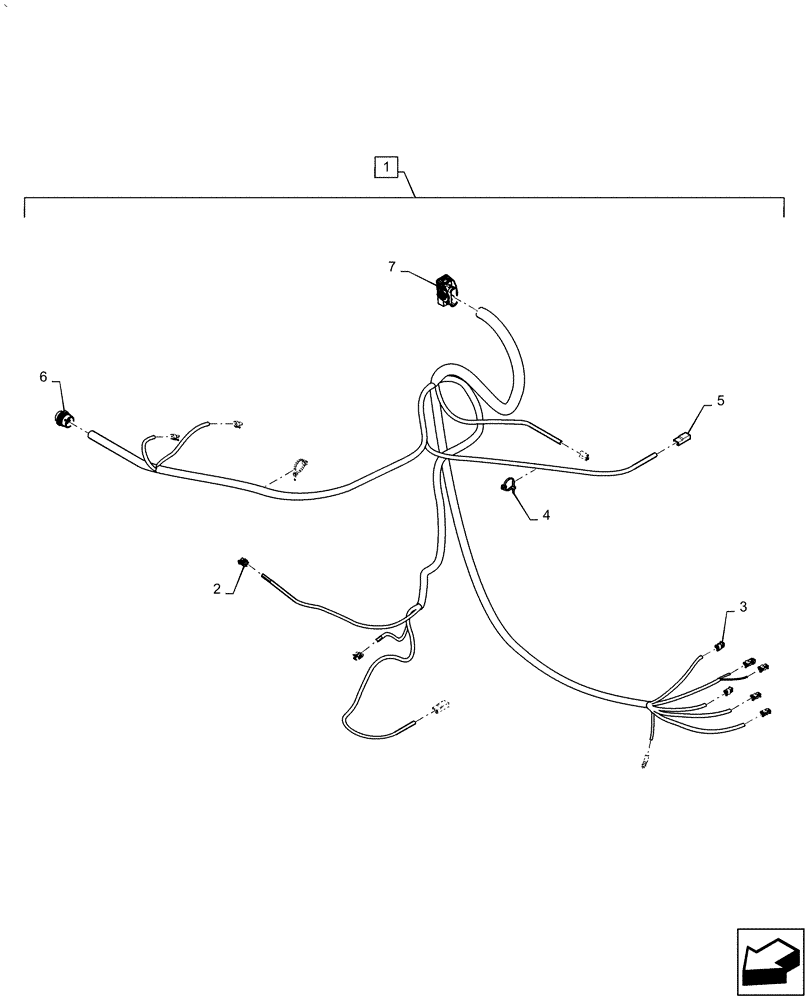

Схема запчастей Case IH AF4077 - (55.101.AC[04]) - FRONT, HARNESS CHASSIS, USE FOR 2016 (55) - ELECTRICAL SYSTEMS
5
4
6
2
1
7
3

Артикул

Название

Примечание

Количество

1

47748482

Front Main, Incl 2 - 7

WIRE HARNESS

1шт.

2

NSS

NOT SOLD SEPARAT

Connector, Electric, M.Pack_2W_REC HSG, Incl in 1

2шт.

3

NSS

NOT SOLD SEPARAT

Connector, Electric, DT SRS_2W_REC HSG, Incl in 1

7шт.

4

NSS

NOT SOLD SEPARAT

Mount Assy, Fir Tree, Incl in 1

18шт.

5

NSS

NOT SOLD SEPARAT

Connector, Electric, .250_1W_REC HSG, Incl in 1

2шт.

6

NSS

NOT SOLD SEPARAT

Connector, Electric, Diagno._9W_TAB HSG, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Electric, SRK HBP_32W_REC HSG, Incl in 1

1шт.

Выбрано товаров: 7
