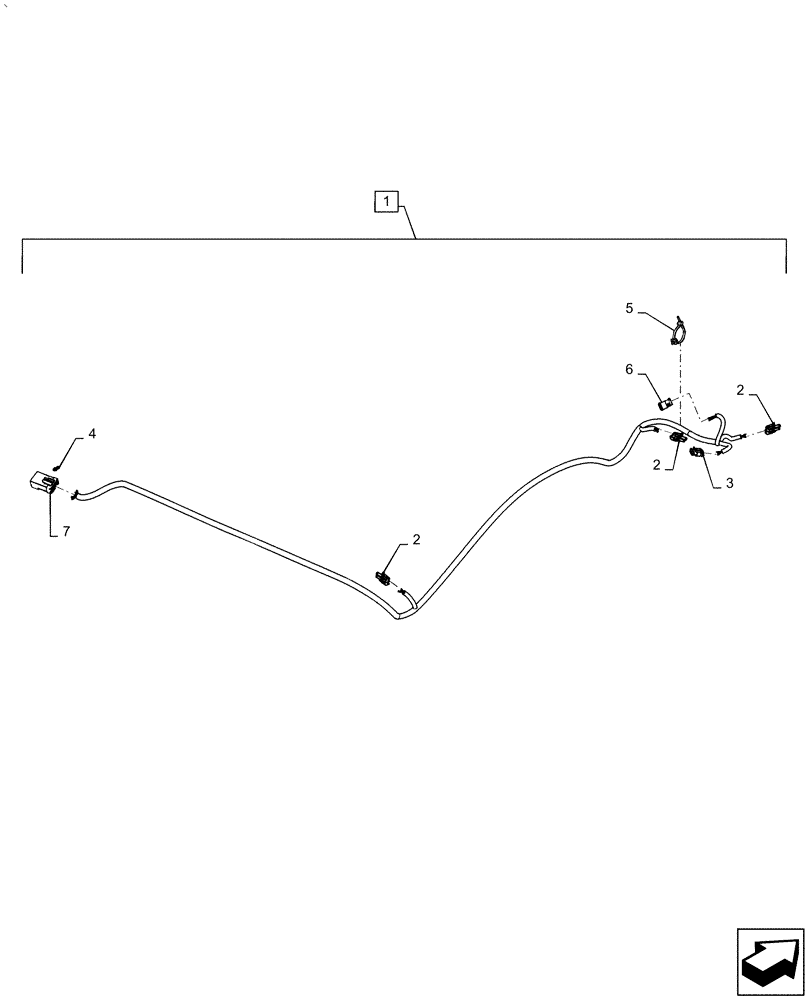

Запчасти Case IH AF4077 (55.101.AA[02]) - HARNESS, LOWER FRAME (55) - ELECTRICAL SYSTEMS

1

47497138

Front Lower, Incl 2 - 7

WIRE HARNESS

1шт.

2

87692855

CONTACT HOUSING,Male, 2 Cavities

Connector, Electric

3шт.

2

245482C1

ELEC CONNECTOR,2 Pin

1шт.

3

87693821

ELEC CONNECTOR,Female, 2 Cavities

1шт.

4

47430298

Connector, Wire, Double X-mas Tree

CLIP,14.7mm H, 30mm L, 7mm Thk

1шт.

5

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

Mount Assy

1шт.

6

87695909

ELEC CONNECTOR,Female, 2 Pole

Connector, Electric

1шт.

7

87382923

ELEC CONNECTOR,Male, 10 Cavities

1шт.
