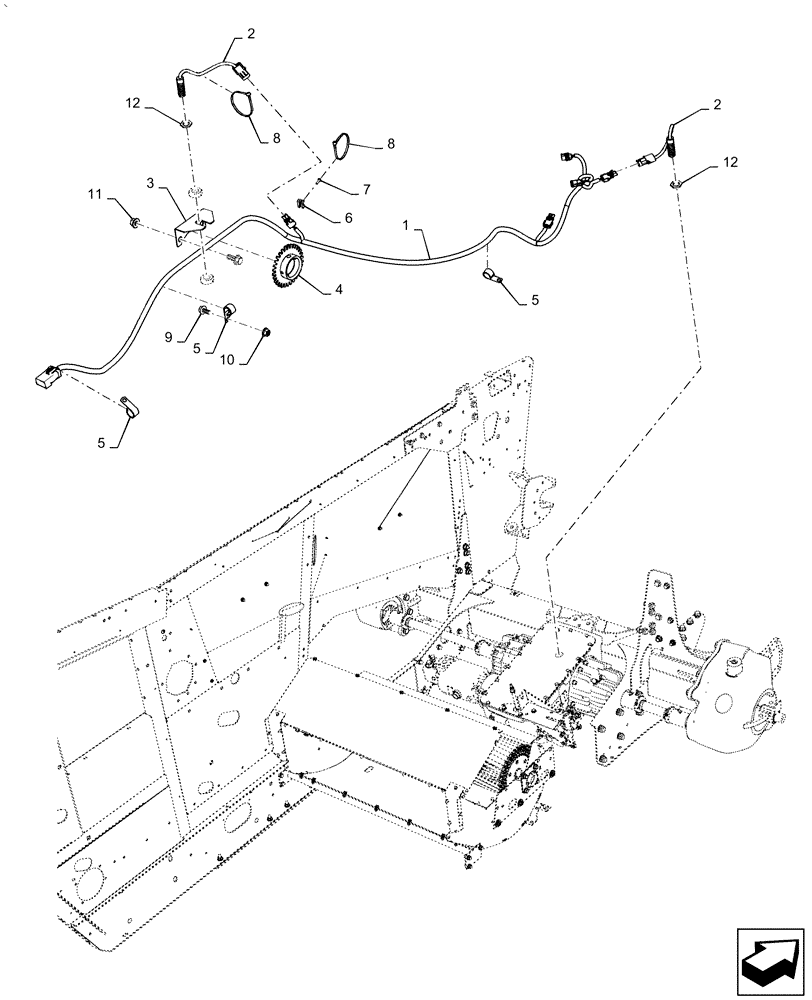

Запчасти Case IH AF4077 (55.101.AA[01]) - HARNESS, LOWER FRAME (55) - ELECTRICAL SYSTEMS

1

47497138

Front Lower

WIRE HARNESS

1шт.

2

245193C2

SENSOR

Gage

2шт.

3

1541554C1

SUPPORT

Bracket, Speed Tach Mag Pickup

1шт.

4

1541555C1

SPROCKET

Fan, Cleaning

1шт.

5

87016871

CLAMP,9.5mm, Coat, 10.3mm Bolt Hole, J Type

3шт.

6

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

1шт.

7

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

1шт.

8

86566990

CABLE TIE,292mm OAL x 4.8mm W

2шт.

9

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

1шт.

10

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

11

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

12

425-1512

JAM NUT,Jam, 3/4"-10, G5

2шт.
