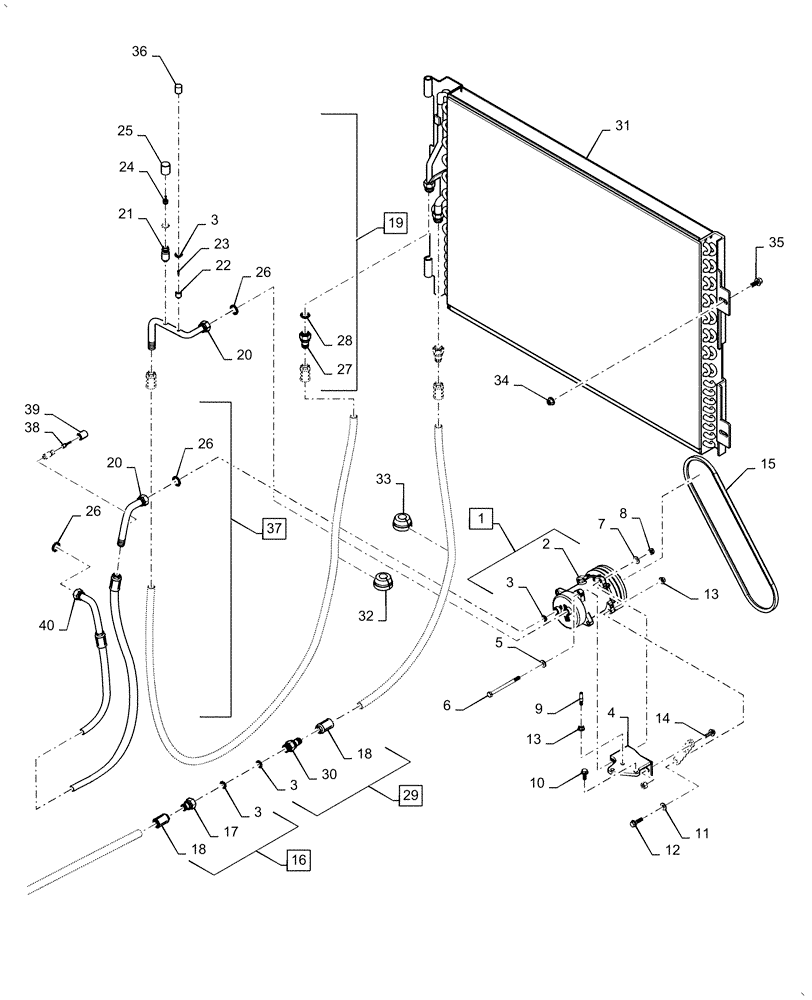

Запчасти Case IH AF4077 (50.200.BY[02]) - HEATER, W/ AIR CONDITIONING, COMPRESSOR TO, CONDENSER, CAB CHASSIS CONNECTIONS (50) - CAB CLIMATE CONTROL

1

86993462

AIRCOND. COMPRESSOR

Incl 2, 3

1шт.

2

135324A2

CLUTCH

Assy

1шт.

3

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

Air Conditioning

5шт.

4

84170869

BRACKET

Weldment, Air Conditioning Compressor

1шт.

5

3120737R1

WASHER,10.8mm ID x 25mm OD x 5mm Thk

Plain

1шт.

6

86508575

BOLT,Hex, M10 x 130mm, Cl 8.8

1шт.

7

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

8

86512554

NUT,M10 x 1.5, Cl 10

1шт.

9

84196964

STUD

Double Ended

2шт.

10

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

1шт.

11

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

1шт.

12

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

1шт.

13

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

3шт.

14

9840672

BOLT,Hex Serr Flg, M10 x 30mm

1шт.

15

87489502

V-BELT,12.7mm W

1шт.

16

47581968

Air Conditioning, Cab To Condenser, Incl 3, 17, 18

HOSE

1шт.

17

451992C1

NUT

Female O-ring

1шт.

18

414223A1

FITTING

Hose, Straight W/ Female Swivel

2шт.

19

47581971

Hose Assy, Air Conditioning, Compressor To Condensor, Incl 3, 20 - 28

HOSE

1шт.

20

1250592C1

PIPE UNION NUT

Fitting

2шт.

21

414078A1

FITTING,M10 x 0.75 x 38.61mm L

1шт.

22

122081A1

FITTING,M10 x 1.25 x 26.43mm L

Air Conditioning Pressure Switch

1шт.

23

1250594C2

CORE

Valve, Sheets

1шт.

24

414082A1

CORE

Valve, High Flow, High Side, Service Port

1шт.

25

414080A1

CAP,M10 x 0.75 x 22.35mm L, Black

High Flow, High Side Port

1шт.

26

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

27

414225A1

FITTING

1шт.

28

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

29

47581974

Air Conditioning, Outlet To Cab, Incl 3, 18, 30

HOSE

1шт.

30

452005C1

O-RING

Fitting

1шт.

31

87610363

CONDENSER

1шт.

32

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

33

87107420

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

34

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

35

87681207

BOLT,M8 x 24.1mm, Cl 10.9

Flange

2шт.

36

369798A2

SWITCH

Pressure

1шт.

37

47615779

Hose Assy, Air Conditioning Suction, Incl 20, 26, 38 - 40

HOSE

1шт.

38

414083A1

VALVE

High Flow, Low Side Service Port

1шт.

39

414081A1

CAP,M8 x 1 x 17.3mm OD x 21.1mm L

High Flow, Low Side Port

1шт.

40

451994C1

NUT

Female O-ring

1шт.
