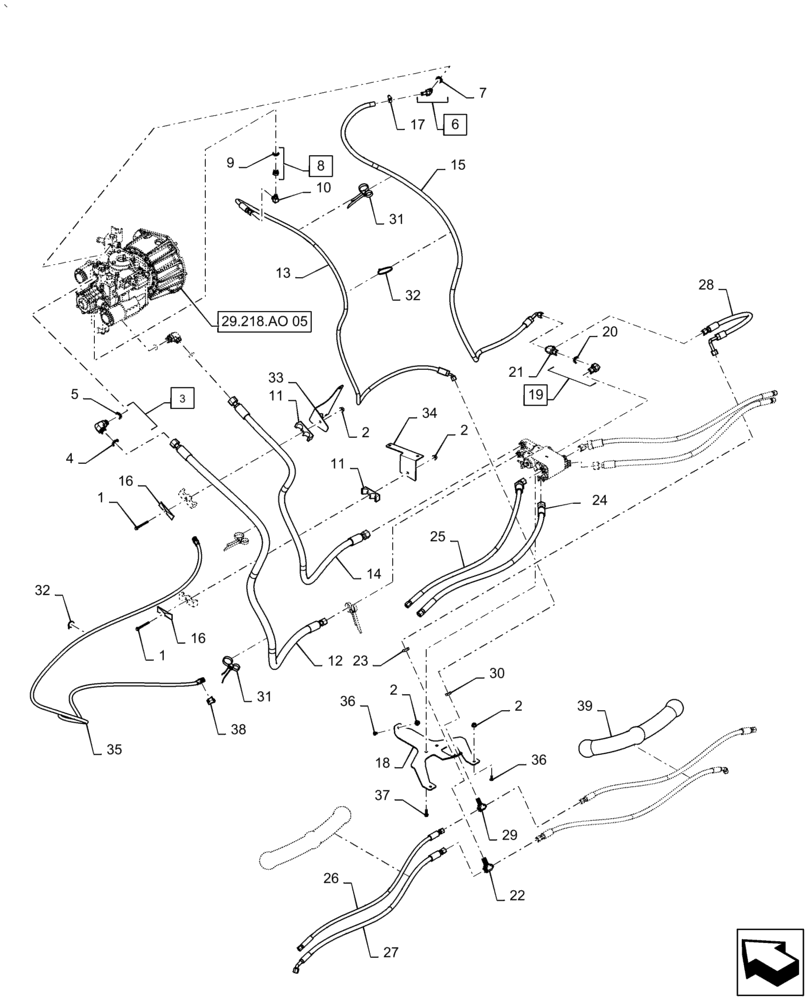

Запчасти Case IH AF4077 (41.200.AO[04]) - STEERING LINES, HYDRAULIC SYSTEM, REAR, USE FOR 2016 (41) - STEERING

1

87695420

BOLT,Hex, M8 x 80mm, Cl 10.9

Flange

8шт.

2

86507066

FLANGE NUT,M8 x 1.25, Cl 10

20шт.

3

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Incl 4, 5

2шт.

4

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

6

87302140

FITTING,45 Degree, 1/2" Hose x 9/16" - 18 ORB Beaded

Incl 7

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

196443A1

REDUCER

Fitting, Incl 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

135485A1

ELBOW

1шт.

11

84154975

CLAMP

2шт.

12

47561595

Hydraulic Lift, Power Guide Axle, Reverse

HOSE

1шт.

13

47561603

Hydraulic Lift, Power Guide Axle, Motor Flush

HOSE

1шт.

14

47561602

Hydraulic Lift, Power Guide Axle, Forward

HYDRAULIC HOSE

1шт.

15

47561601

Hydraulic Lift, Power Guide Axle, Valve Drain

HYDRAULIC HOSE

1шт.

16

1324469C1

PLATE

Bar, Hose Clamp

2шт.

17

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

1шт.

18

47604867

Painted, Power Guide Axle, Valve

SUPPORT

1шт.

19

84989383

90 ELBOW,90 Degree, 13/16"-16 ORFS x 13/16"-16 Fem Sw

Incl 20

1шт.

20

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

21

86624132

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

1шт.

22

86639082

TEE,13/16"-16 ORFS, Blkhd Br

1шт.

23

86639083

BHD LOCK NUT,13/16"-16 ORFS, Bulkhead

1шт.

24

47604008

Hydraulic Lift, Power Guide Axle, Motor, Forward

HYDRAULIC HOSE

2шт.

25

47604009

Hydraulic Lift, Power Guide Axle, Motor, Reverse

HOSE

2шт.

26

47604007

Hydraulic Lift, Power Guide Axle, Motor, Flush

HYDRAULIC HOSE

2шт.

27

47604006

Hydraulic Lift, Power Guide Axle, Motor, Drain

HYDRAULIC HOSE

2шт.

28

47603996

Hydraulic Lift, Power Guide Axle, Motor, Drain To Valve

HYDRAULIC HOSE

1шт.

29

87306678

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 ORFS

1шт.

30

87010704

BHD LOCK NUT,11/16"-16

1шт.

31

84386243

CLAMP,489mm L

Cable Tie

4шт.

32

86566990

CABLE TIE,292mm OAL x 4.8mm W

9шт.

33

47617336

Painted, Upper, Power Guide Axle, Hose Clamp

SUPPORT

1шт.

34

47617337

Painted, Lower, Power Guide Axle, Hose Clamp

SUPPORT

1шт.

35

47730961

Harness Wire, Pg Axle

WIRE

1шт.

36

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

3шт.

37

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

38

109821A1

SWITCH

Rocker

1шт.

39

84171873

PROTECTIVE SLEEVE,90mm ID x 850mm L

2шт.
