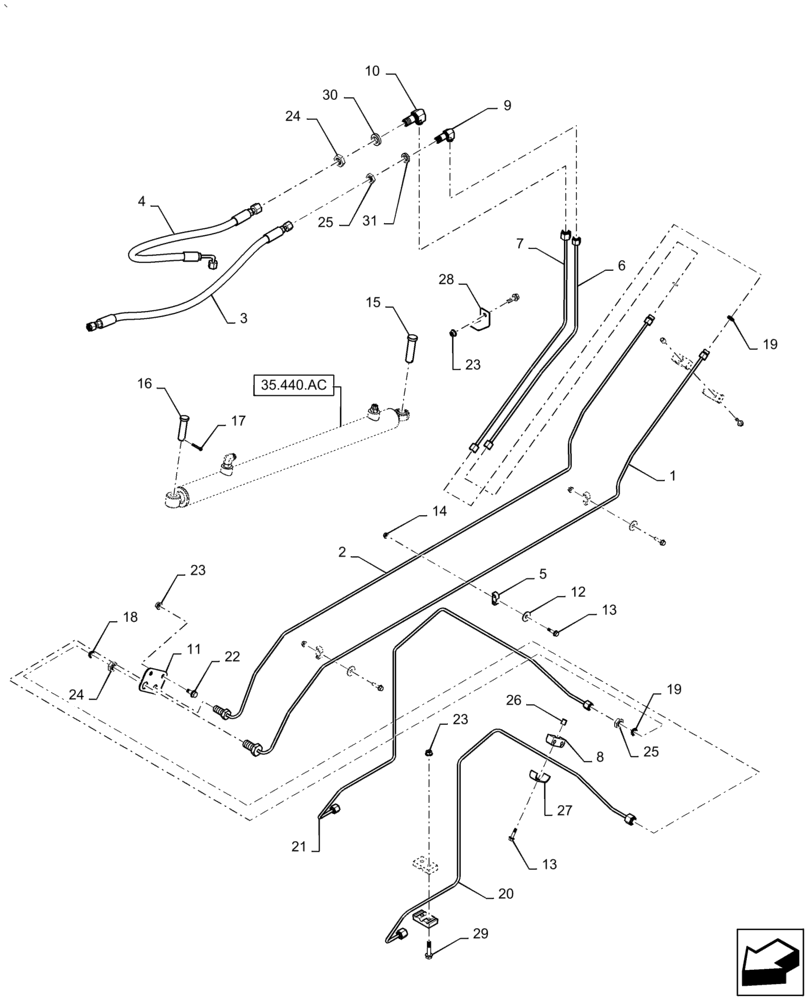

Запчасти Case IH AF4077 (35.440.AB) - HYDRAULIC, UNLOADER SWING CIRCUIT (35) - HYDRAULIC SYSTEMS

1

47469460

Unloader Swing Out

TUBE

1шт.

2

47469459

Unloader Swing In

TUBE

1шт.

3

47469641

Hydraulic Lift, Unloader Swing In

HOSE

1шт.

4

47469642

Hydraulic Lift, Unloader Swing Out

HOSE

1шт.

5

183824C1

CLAMP

3шт.

6

47469639

Unloader Swing In

TUBE

1шт.

7

47469640

Unloader Swing Out

TUBE

1шт.

8

418783A1

CLAMP

Tube

2шт.

9

84326219

90 ELBOW,9/16"-18 ORFS

Union

1шт.

10

87317453

ELBOW,90 Degree, 11/16" - 16, ORFS, Blkhd

1шт.

11

47469462

Bracket Painted, Unloader

SUPPORT

1шт.

12

86632582

WASHER,0.34" ID x 1" OD x 0.06" Thk

3шт.

13

87670758

FLANGE BOLT,M6 x 31.6mm, Cl 10.9

5шт.

14

86050300

FLANGE NUT,M6 x 1.0, Cl 10

3шт.

15

439-51044

HEADED PIN,5/8" x 2 3/4"

1шт.

16

86624084

CLEVIS PIN,15.88mm OD x 62.48mm L

1шт.

17

80755

COTTER PIN,1/8" OD x 1" L

1шт.

18

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

19

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

20

47666253

Lift, Unloader Swing In

TUBE

1шт.

21

47604051

Lift, Unloader Swing Out

HYD TUBE

1шт.

22

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

2шт.

23

86507066

FLANGE NUT,M8 x 1.25, Cl 10

5шт.

24

87010704

BHD LOCK NUT,11/16"-16

2шт.

25

86639063

BHD LOCK NUT,9/16"-18, ORFS Blkhd

2шт.

26

87560349

SLEEVE

Spacer Tube Clamp

2шт.

27

418784A1

PLATE

Tube Clamp

2шт.

28

47733267

Retainer, Unloader Cylinder Pin

RETAINER

1шт.

29

87698834

BOLT,M8 x 48.1mm, Cl 10.9

Flange

2шт.

30

10520201

WASHER,16.4mm ID x 28mm OD x 3mm Thk

1шт.

31

87016606

WASHER,20mm ID x 34mm OD x 3mm Thk

1шт.
