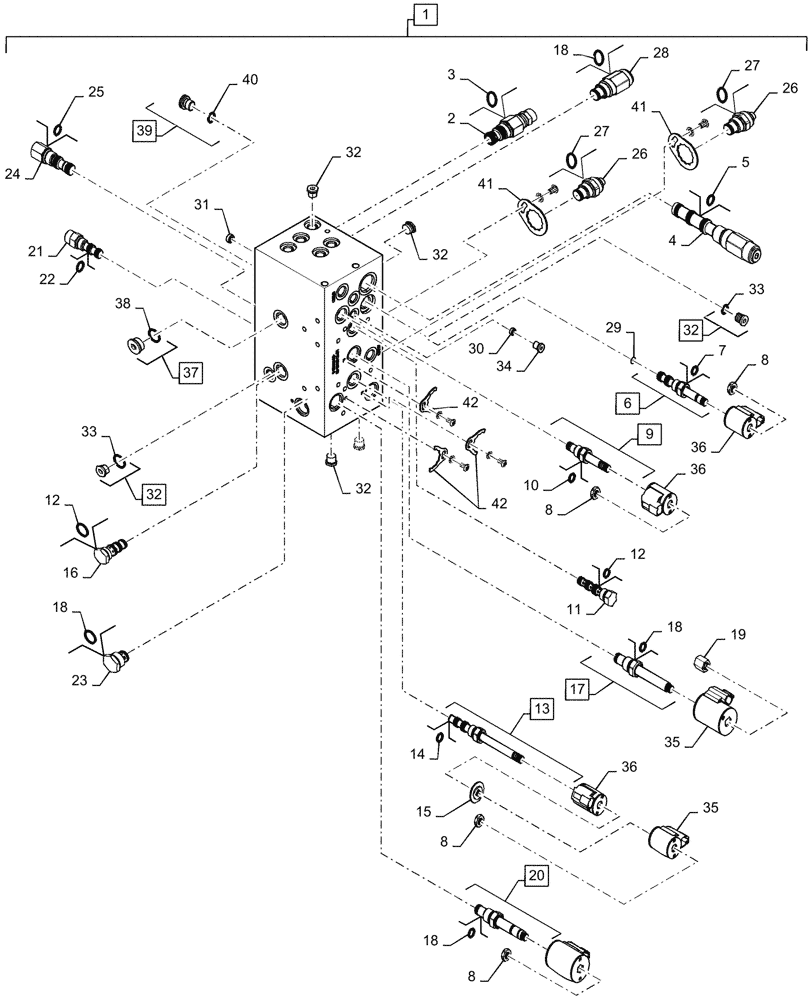

Запчасти Case IH AF4077 (35.310.AF[04]) - HYDRAULIC VALVE, COMPONENTS, USE FROM 2016 (35) - HYDRAULIC SYSTEMS

1

47955184

Hydraulic Lift, Main, Incl 2 - 42, Use from 2016

VALVE

1шт.

2

47442307

Hydraulic Pressure Regulator Cartridge, Incl 3

VALVE

1шт.

3

47444623

Kit

SEAL

1шт.

4

47442300

Hydraulic Lift, Priority Flow Cartridge, Incl 5

VALVE

1шт.

5

388744A1

SEAL KIT

Seal Hydraforce

1шт.

6

47442276

Hydraulic Lift, Solenoid Cartridge, Incl 7, 8

VALVE

1шт.

7

84227088

SEAL KIT

1шт.

8

87348571

NUT,Hex, 1/2" - 20, RH

Coil

4шт.

9

47442280

Hydraulic Lift, Normally Closed Solenoid Cartridge, Incl 8, 10

VALVE

1шт.

10

1542831C1

SEAL KIT

1шт.

11

87604610

FITTING

Plug, Cavity, Incl 12

1шт.

12

86556830

SEAL KIT

2шт.

13

87269967

ELECTRO-VALVE

Hydraulic Lift, Solenoid Cartridge, Incl 8, 14 - 15

1шт.

14

87269973

SEAL KIT

Solenoid Valve

1шт.

15

87348582

Coil

SPACER

1шт.

16

87692274

VALVE

Dual Pilot Operated Check Cartridge, Incl 12

1шт.

17

47623036

Hydraulic Lift, Normally Open Solenoid Cartridge, Incl 18, 19

VALVE

1шт.

18

1542830C2

SEAL KIT

4шт.

19

84227089

NUT

Coil

1шт.

20

47442264

Hydraulic Lift, Normally Closed Solenoid Cartridge, Incl 8, 18

VALVE

2шт.

21

87561976

HYDRAULIC VALVE

Blocking Cartridge, Incl 22

1шт.

22

329483A1

SEAL KIT

Hydraforce

1шт.

23

87347961

CARTRIDGE

Valve, Check, Incl 18

1шт.

24

47442304

Hydraulic Lift, Press Reducing Cart, Incl 25

VALVE

1шт.

25

237126A1

SEAL KIT

1шт.

26

47442293

Needle, Cartridge, Incl 27

VALVE

2шт.

27

329484A1

SEAL KIT

Hydraforce

1шт.

28

47623037

Hydraulic Lift, Relief Cartridge, Incl 18

VALVE

1шт.

29

47442373

Orifice

ORIFICE

1шт.

30

47442367

Orifice

PLUG

1шт.

31

47442363

Orifice

PLUG

2шт.

32

9625178

PLUG,9/16" - 18 ORB

Incl 33

13шт.

33

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

34

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

35

87582525

COIL

Hydraulic Lift Cartridge Valve

3шт.

36

87582524

COIL

Hydraulic Lift Cartridge Valve

4шт.

37

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Incl 38

1шт.

38

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

39

86598045

PLUG,M16 x 1.5

Incl 40

2шт.

40

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

41

47955281

Kit, Hydraulic Cartridge Lock, Use from 2016

KIT

2шт.

42

47955282

Kit, Hydraulic Cartridge Lock, Use from 2016

KIT

3шт.
