Запчасти Case IH AF4077 (35.310.AF[02]) - HYDRAULIC VALVE, USE FOR 2016 (35) - HYDRAULIC SYSTEMS

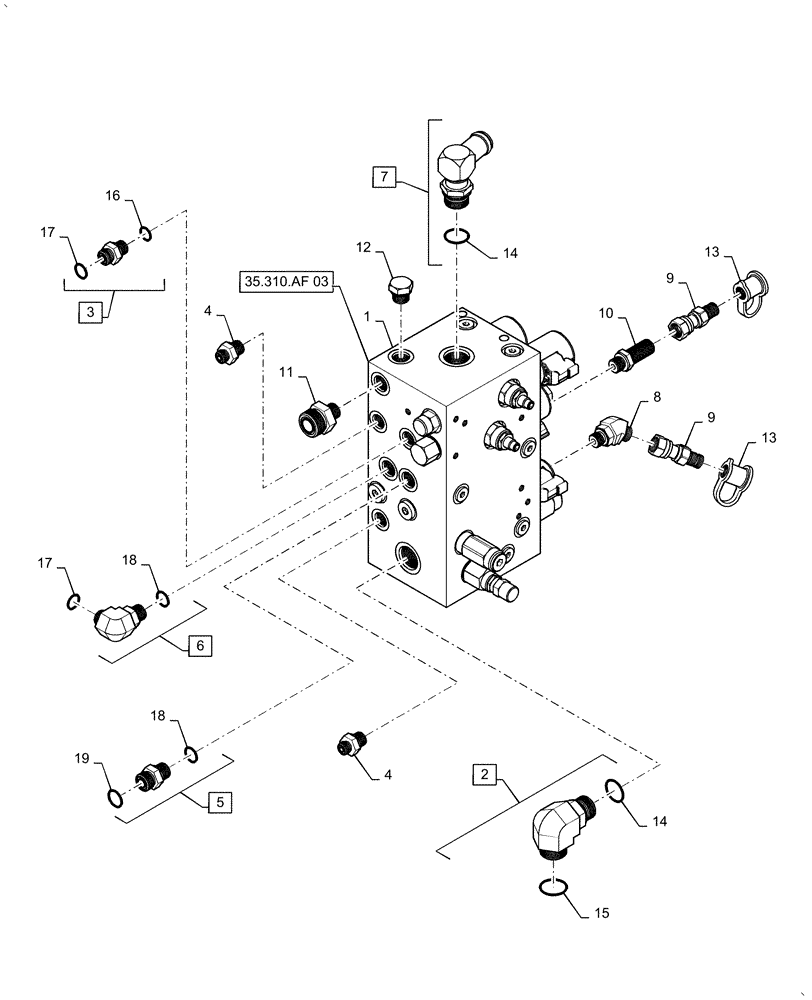

Схема запчастей Case IH AF4077 - (35.310.AF[02]) - HYDRAULIC VALVE, USE FOR 2016 (35) - HYDRAULIC SYSTEMS
2
8
10
18
12
4
15
11
9
16
6
9
13
17
35.310.af 03
14
18
13
19
7
14
4
5
3
1
17

Артикул

Название

Примечание

Количество

1

47611369

Main and Fore

HYDRAULIC VALVE

1шт.

2

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

Incl 14, 15

1шт.

3

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

Incl 16, 17

1шт.

4

84294527

HYD CONNECTOR,M16 x 1.5 ORB x 9/16" - 18 ORFS

2шт.

5

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 18, 19

1шт.

6

86579688

ELBOW,90 Degree, 11/16"-18 ORFS x M18 x 1.5 ORB

Incl 17, 18

1шт.

7

84210609

90 ELBOW

Fitting, Hose, Incl 14

1шт.

8

84346907

ELBOW,M16 x 1.5 x 33.5mm

1шт.

9

243670A1

COUPLING

Diagnostic

2шт.

10

84224892

HYD CONNECTOR

1шт.

11

87530371

FITTING

Connector

1шт.

12

87030025

PLUG,Hex, M18 x 1.5 ORB

1шт.

13

86502604

DUST CAP

2шт.

14

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

15

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

16

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

17

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

18

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

19

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

Выбрано товаров: 19
