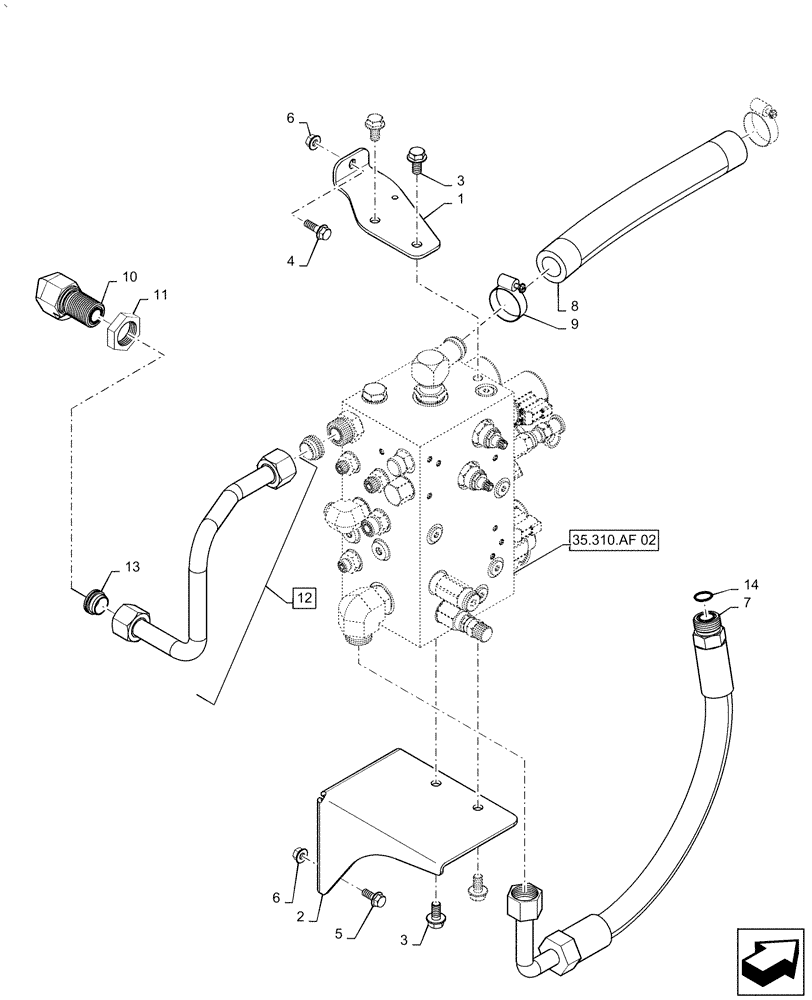

Запчасти Case IH AF4077 (35.310.AF[01]) - HYDRAULIC VALVE, SUPPORT (35) - HYDRAULIC SYSTEMS

1

47475245

Bracket, Main Valve Upper

SUPPORT

1шт.

2

47475246

Bracket, Main Valve Lower

SUPPORT

1шт.

3

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

4шт.

4

87698833

BOLT,M8 x 33.1mm, Cl 10.9

Flange

1шт.

5

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

4шт.

6

86507066

FLANGE NUT,M8 x 1.25, Cl 10

5шт.

7

47465254

Assy, Main Valve Inlet

HOSE

1шт.

8

47465255

Assy, Main Valve Outlet, Use for 2015

HOSE

1шт.

9

86634187

HOSE CLAMP,50.8mm ID - 26.9mm ID, Lined

Use for 2015

2шт.

10

86837484

ELBOW,90 Degree, 1 3/16"-12. ORFS, Blkhd

1шт.

11

86639062

BHD LOCK NUT,1-3/16"-12 ORFS, Bulkhead

Tube

1шт.

12

47483413

Hydraulic Lift, Feeder Lift, Front Post, Incl 13

TUBE

1шт.

13

86642915

Tube

SLEEVE,20mm ID

2шт.

14

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
