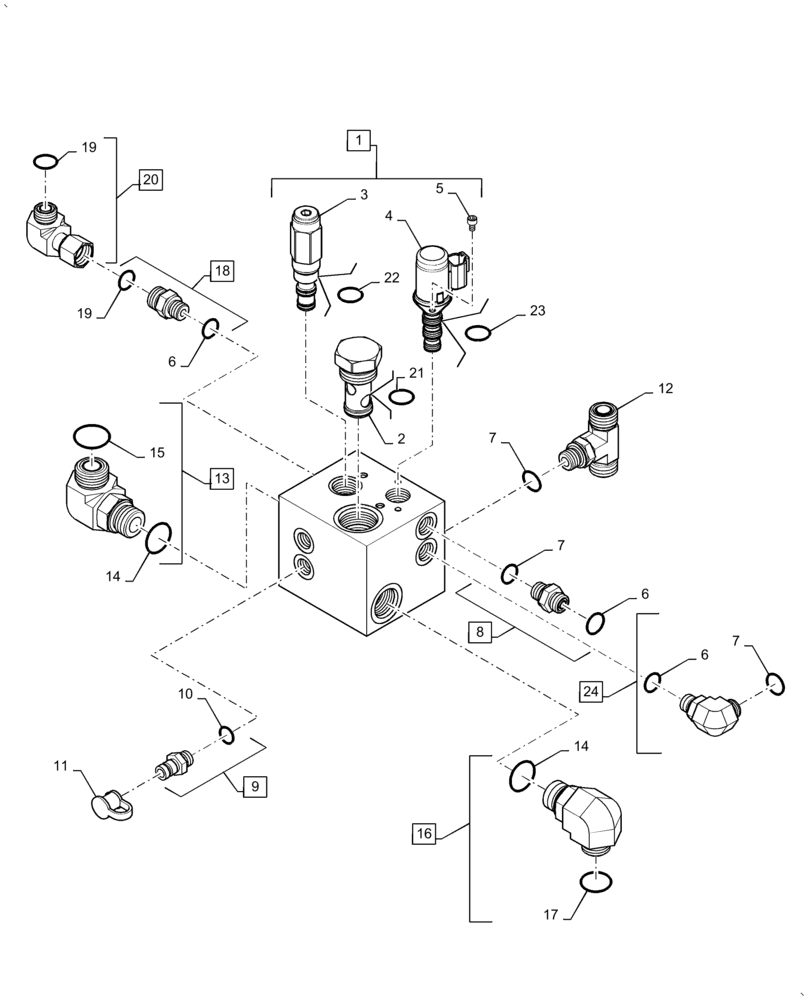

Запчасти Case IH AF4077 (35.102.AE) - VALVE, SEPARATOR, REGULATOR (35) - HYDRAULIC SYSTEMS

1

47469575

Hydraulic Lift, Separate, Regulator, Incl 2 - 5

VALVE

1шт.

2

47518470

Cartridge, Incl 21

SCREEN

1шт.

3

47518468

Pressure Reducing Cartridge, Incl 22

VALVE

1шт.

4

47518465

Incl 23

VALVE

1шт.

5

47518529

Socket Head Cap

SCREW

2шт.

6

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

3шт.

7

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

8

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

Incl 6, 7

1шт.

9

178889A1

DIAGNOSTIC COUPLER

Coupling Diagnostic, Male, Incl 10

2шт.

10

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

11

86502604

DUST CAP

Hydraulic Lift Valve

2шт.

12

87016910

TEE,1"-14 ORFS x M18 x 1.5 ORB Br

1шт.

13

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

Incl 14, 15

1шт.

14

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

15

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

16

84100209

90 ELBOW,1"-14 ORFS x M27 x 2 ORB

Incl 14, 17

1шт.

17

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

18

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

Incl 6, 19

1шт.

19

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

20

84989383

90 ELBOW,90 Degree, 13/16"-16 ORFS x 13/16"-16 Fem Sw

Incl 19

1шт.

21

87365420

SEAL KIT

Incl In 2

1шт.

22

120469A1

SEAL KIT

Incl In 3

1шт.

23

47552180

Incl In 4

SEAL

1шт.

24

86579687

ELBOW,90 Degree, 11/16"-16 x M16 x 1.5 ORB

1шт.
