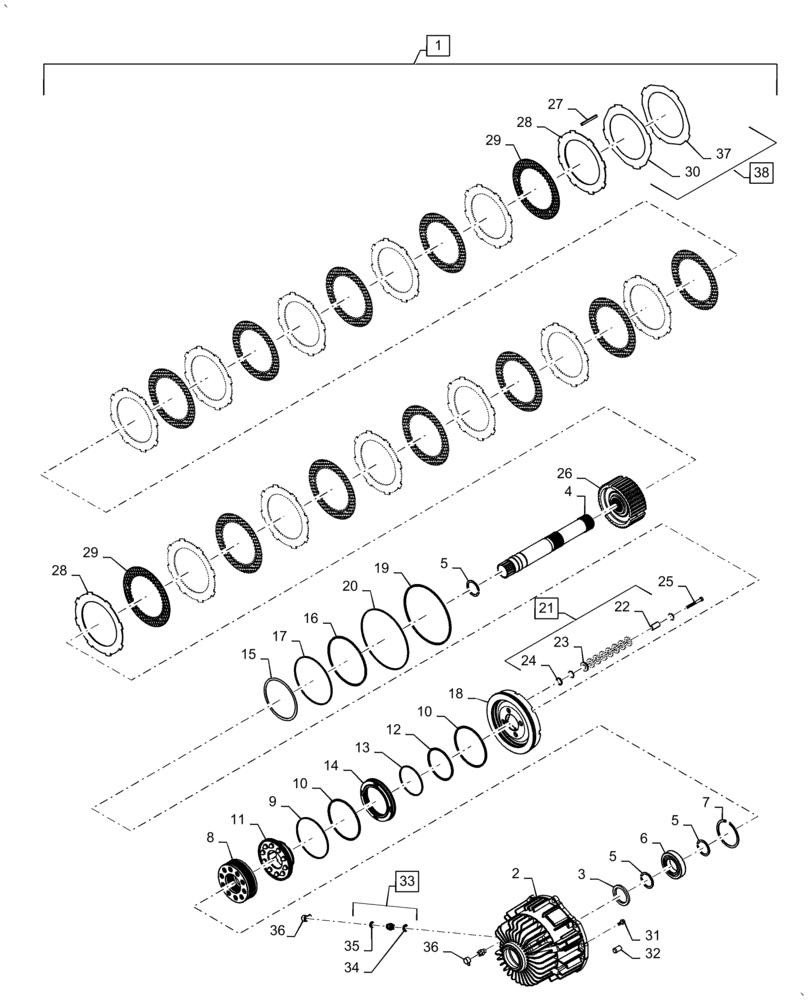

Запчасти Case IH AF4077 (33.202.AK) - BRAKES MASTER (33) - BRAKES & CONTROLS

1

236388A1

BRAKE ASSY.

Incl 2 - 38

2шт.

2

1997395C1

HOUSING

Brake

1шт.

3

184072C1

OIL SEAL,55.88mm ID x 76.2mm OD x 9.5mm Thk

Brake

1шт.

4

236378A1

SHAFT

Output

1шт.

5

358059R1

SNAP RING

Shaft Output

3шт.

6

A21266

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

Power Take Off Clutch Spider

1шт.

7

101-21393

SNAP RING,#393, 4.234", Int

Retaining Rectangle Plain

1шт.

8

1997999C2

SPRING

Assembly

1шт.

9

1997618C4

SEAL,151.1mm ID x 155mm OD x 3.3mm Thk

Piston

1шт.

10

238-7162

O-RING,0.103" Thk x 5.737" ID, -162, Cl 7, 75 Duro

2шт.

11

1997400C1

PISTON

Housing

1шт.

12

238-7157

O-RING,0.103" Thk x 4.487" ID, -157, Cl 7, 75 Duro

1шт.

13

1997619C4

RING,108.2mm ID x 112mm OD x 3.3mm Thk

1шт.

14

1997399C1

PISTON

Housing

1шт.

15

102-22625

SNAP RING,#625, 6.474", Int, Spiral

Retaining Medium

1шт.

16

238-7168

O-RING,0.103" Thk x 7.237" ID, -168, Cl 7, 75 Duro

1шт.

17

1997617C4

SEAL,179.2mm ID x 183mm OD x 3.3mm Thk

Shaft Output

1шт.

18

1997398C1

PISTON

Housing

1шт.

19

238-7174

O-RING,0.103" Thk x 8.737" ID, -174, Cl 7, 75 Duro

1шт.

20

1997616C4

SEAL,227.1mm ID x 231mm OD x 3.3mm Thk

Shaft Output

1шт.

21

1997900C1

SPRING

Belleville Assy, Incl 22 - 24

4шт.

22

1997899C1

SPACER

Spring Retain

1шт.

23

1997912C1

BELLEVILLE WASHER

8шт.

24

100-1462

SNAP RING,#62, Ext

Retaining Extension Heavy, Use for 2016

3шт.

24

87034506

RETAINER

Use from 2017

3шт.

25

828-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

4шт.

26

1997394C1

HUB

Piston

1шт.

27

221254A1

SPACER

Piston

8шт.

28

1285974C1

BRAKE PLATE

Master Clutch Seperator

13шт.

29

1997959C1

BRAKE DISC

Friction

12шт.

30

196186A1

SHIM

Brake

3шт.

31

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

Flange

4шт.

32

837-16030

DOWEL,16mm OD x 30mm L

Pin

2шт.

33

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 34, 35

2шт.

34

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Use for 2016

1шт.

34

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

Use from 2017

1шт.

35

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

36

189562A1

PLUG

Cap

2шт.

37

193086A1

SHIM

End

2шт.

38

221598A1

SHIM KIT

Package and Pin, Incl 27, 30, 37

11шт.
