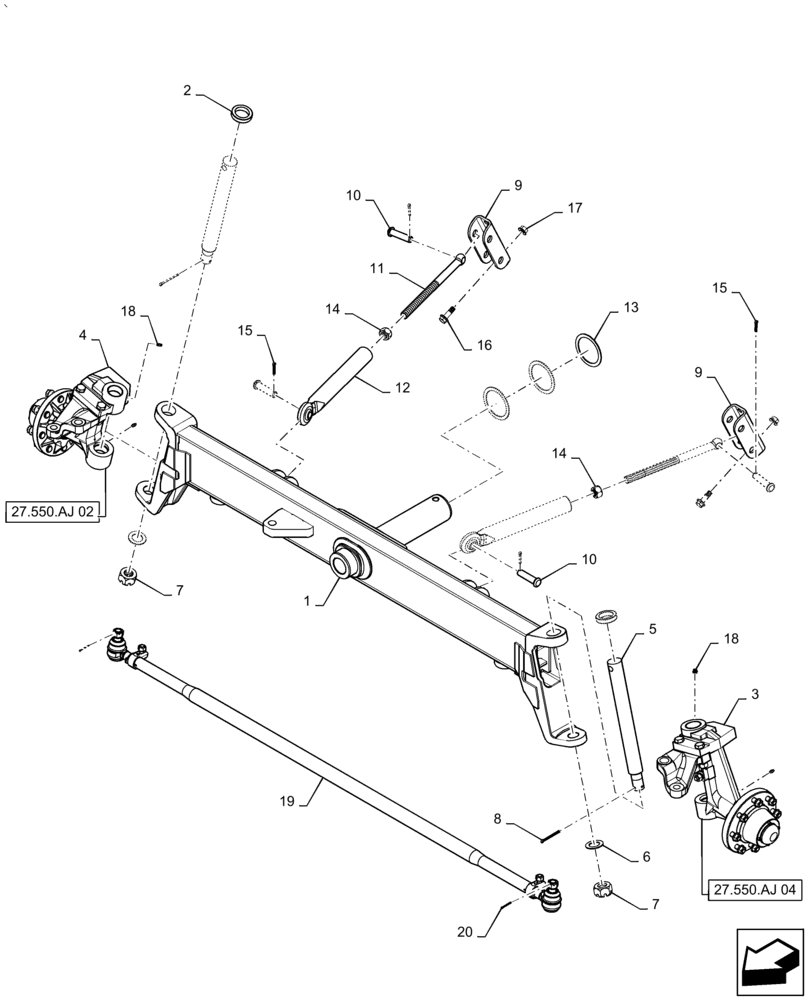

Запчасти Case IH AF4077 (27.550.AJ[01]) - STEERING CYLINDER, REAR AXLE, FIXED (27) - REAR AXLE SYSTEM

1

47827886

Guide Wheel

AXLE

1шт.

2

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

2шт.

3

84164051

KNUCKLE

Assy, RH, Non - Power Guide Axle, Use for 2016

1шт.

3

48050575

Assy, RH, Non - Power Guide Axle, Use from 2017

1шт.

4

84164052

KNUCKLE

Assy, LH, Non - Power Guide Axle, Use for 2016

1шт.

4

48050580

Assy, LH, Non - Power Guide Axle, Use from 2017

1шт.

5

186052C1

PIN,50.8mm OD x 508mm L

Guide, Wheel

2шт.

6

495-81224

WASHER,38.89mm ID x 63.5mm OD x 3.35mm Thk

2шт.

7

425-1224

SLOTTED NUT,1 1/2"-6, G5

2шт.

8

432-1648

COTTER PIN,1/4" x 3"

2шт.

9

47597512

Bracket Frame, Stabilizer Bar

SUPPORT

2шт.

10

439-11456

HEADED PIN,22.23mm OD x 88.9mm L

4шт.

11

181442C3

EYEBOLT,1" - 8 x 381mm

Axle Rod

2шт.

12

84126549

ROD

Assy, Axle Rear Eye

2шт.

13

47463941

Steering Axle Pivot

WASHER

3шт.

14

425-1016

NUT,1"-8, G5

2шт.

15

432-1620

COTTER PIN,1/4" x 1 1/4"

4шт.

16

87698849

BOLT,M16 x 50mm, Cl 10.9

4шт.

17

86512498

FLANGE NUT,M16 x 2, Cl 10

4шт.

18

219-87

LUBE NIPPLE,1/4" - 28 NPTF

Fitting

4шт.

19

84495941

ROD

Tie Assy

1шт.

20

432-824

COTTER PIN,1/8" x 1 1/2"

2шт.
