Запчасти Case IH AF4077 (21.130.BC[02]) - CONTROLS - TRANSMISSION UPPER SHIFT, HEATER AND AC, USE FOR 2016 (21) - TRANSMISSION

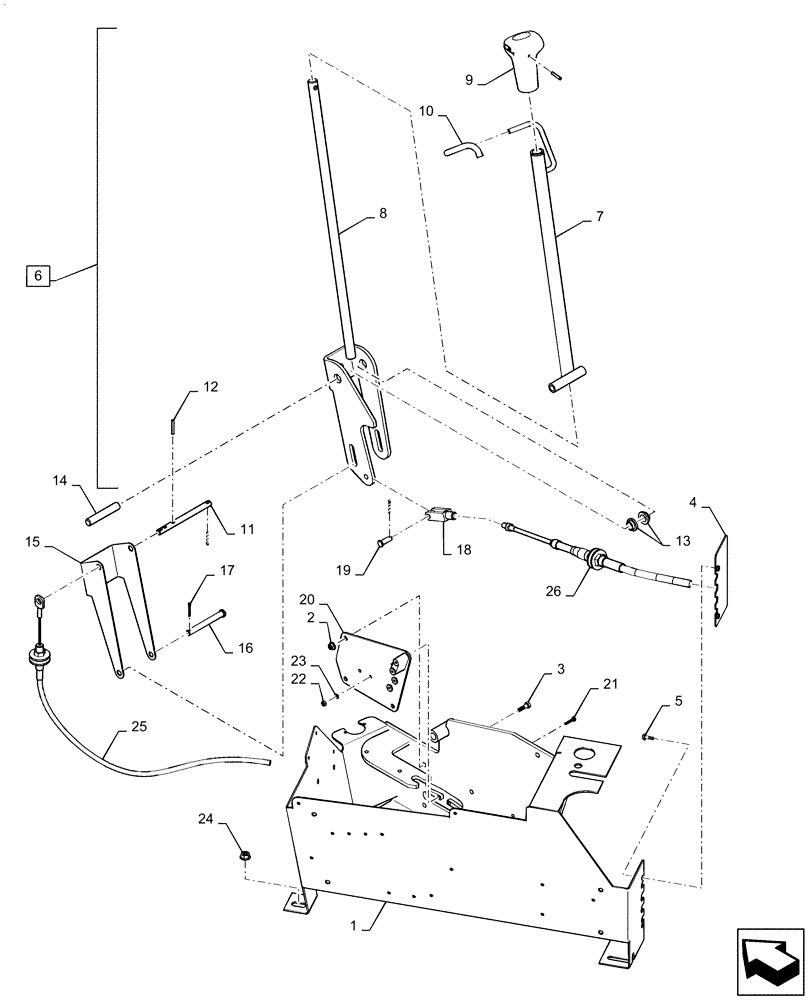

Схема запчастей Case IH AF4077 - (21.130.BC[02]) - CONTROLS - TRANSMISSION UPPER SHIFT, HEATER AND AC, USE FOR 2016 (21) - TRANSMISSION
4
7
13
2
25
18
12
19
26
11
15
14
3
8
21
6
22
10
16
17
9
20
5
1
23
24

Артикул

Название

Примечание

Количество

1

47606492

FRAME

1шт.

2

825-5146

SERRATED NUT,M6, Flg Ser

4шт.

3

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

4

47762584

PLATE

1шт.

5

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

Captive

2шт.

6

227181A2

LEVER

Handle Assy, Transmission Shifter, Incl 7 - 10, 12

1шт.

7

197971A2

TUBE,15.9 mm ID

Assy, Transmission Shift

1шт.

8

122751A3

LEVER

Rod

1шт.

9

122205A3

HANDLE

Knob, Gearshift

1шт.

10

125803A1

SLEEVE

Shift Rod

1шт.

11

122197A2

SPLIT PIN/SAFETY PIN

1шт.

12

838-1428

LOCK PIN,M4 x 28, Slotted

4шт.

13

S115001

FLANGED BEARING,0.502" ID x 0.627" OD x 0.3125"

2шт.

14

122199A1

PIVOT PIN,12.7mm OD x 73mm L

1шт.

15

124714A2

SUPPORT

Channel

1шт.

16

427-6325

CLEVIS PIN,3/8" x 3 1/4"

1шт.

17

432-612

COTTER PIN,3/32" x 3/4"

3шт.

18

213-125

ADJUSTABLE CLEVIS,5/16" - 32

1шт.

19

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

20

122757A3

GUIDE

Liner, Shift Gate

1шт.

21

86511824

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 20mm, Cl 4.8

2шт.

22

824-1404

NUT,M4, Cl 5

2шт.

23

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

24

825-5148

SERRATED NUT,M8, Flg Ser

3шт.

25

115398A1

CABLE,3209mm L

Control, Transmission

1шт.

26

115397A1

CABLE,3571mm L

Control

1шт.

Выбрано товаров: 26
