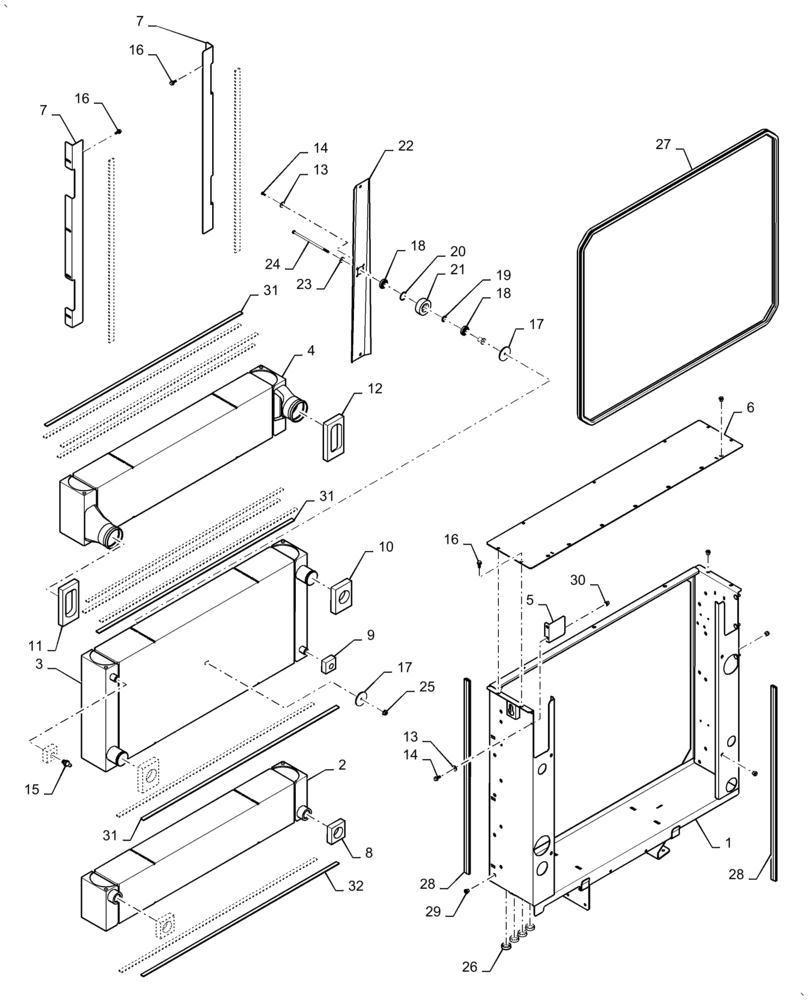

Запчасти Case IH AF4077 (10.400.BF[02]) - RADIATOR, OIL COOLER, COOLER BOX, AIR COOLER (10) - ENGINE

1

47532799

Weld Assy

FRAME

1шт.

2

47516012

Oil

COOLER

1шт.

3

47516010

Radiator

COOLER

1шт.

4

47516011

Inter, Cac

COOLER

1шт.

5

47532120

Coolerbox

ANGLE

1шт.

6

47532109

Top, Cooling Group

PLATE

1шт.

7

47532140

Cooler Mounting

ANGLE

2шт.

8

87318582

GASKET,25mm Thk

Rubber Seal

2шт.

9

87318590

RUBBER SEAL

2шт.

10

87318587

RUBBER SEAL

2шт.

11

87318589

RUBBER SEAL

1шт.

12

87318588

RUBBER SEAL

1шт.

13

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

14

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

15

395779

NIPPLE

Fitting, Bulbed

1шт.

16

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

14шт.

17

87329379

WASHER,9mm ID x 60mm OD x 4mm Thk

2шт.

18

86629503

BALL BEARING,17mm ID x 35mm OD x 10mm W

2шт.

19

84334251

WASHER,17.5mm ID x 24mm OD x 2mm Thk

1шт.

20

300642

CIRCLIP,M35 x 1.5mm W, Internal

Ring, Retain

1шт.

21

84437613

BUSHING,35mm ID x 65mm OD x 23mm Thk

1шт.

22

47546699

FAN BLADE

1шт.

23

86592711

WASHER,8.4mm ID x 21mm OD x 4mm Thk

1шт.

24

87522762

BOLT,Hex, M8 x 195mm, Cl 8.8

1шт.

25

87681210

FLANGE NUT,M8 x 1.25, Cl 10

Prevailing Torque

1шт.

26

353-414

PLUG,Dome, 1.375" Hole, Nylon

4шт.

27

401209

SEAL PROTECTION

Strip, 3.9m

1шт.

28

87324720

SEAL PROTECTION

1.9m

1шт.

29

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

34шт.

30

84983191

RIVET,Flng, 9mm OD x 15.2mm L

1шт.

31

400987

SEAL

13.8m

1шт.

32

401278

SEALING STRIP

1.8m

1шт.
